KLP Series Micro Diaphragm Pumps
A simple and efficient liquid pumping solution for various applications.
- Brand: Kamoer
- Model: KLP01-E KA 1
- Operating Voltage (VDC): 24
- Operating Current (A): 0.3
- Operating Temperature (C): 0 to 40
- Flow Rate (ml/min): 350
- Noise Level (dB): <40
- Length (mm): 83
- Width (mm): 32.5
- Height (mm): 60
- Weight (gm): 207
- Shipment Weight: 0.25 kg
- Shipment Dimensions: 9 x 4 x 7 cm
Top Features:
- Self-Priming
- Low Power Consumption
- Long Life
- Compact Size
The KLP series micro diaphragm pumps from Kamoer operate on a simple yet effective principle of the oscillating displacement pump. The rotational power from the motors is converted into vertical movement by an eccentric gearbox, resulting in a smooth pumping action. These pumps are versatile and can be mounted in any position, making them suitable for various applications such as medical supporting equipment, liquid transport, sample analysis, liquid packaging, distribution, and wastewater sampling and transport.
The KLP01 type liquid pumps can deliver up to 350ml/min when operated on 24V, providing efficient liquid transfer capabilities. With a low noise level and the ability to run in dry conditions, these pumps offer reliable performance in diverse settings.

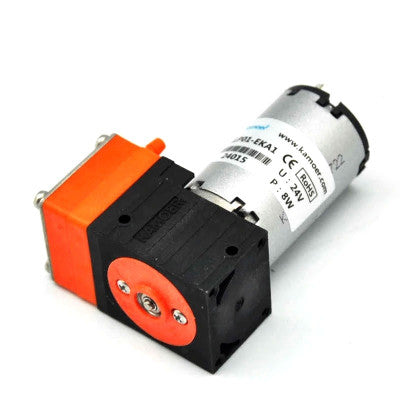

The package includes 1 x Kamoer 24V 0.3A 350ml/min tube liquid diaphragm pump Model KLP01-E KA 1, ensuring you have all you need for your liquid pumping requirements.
*Images are for illustration only; actual product may vary.
