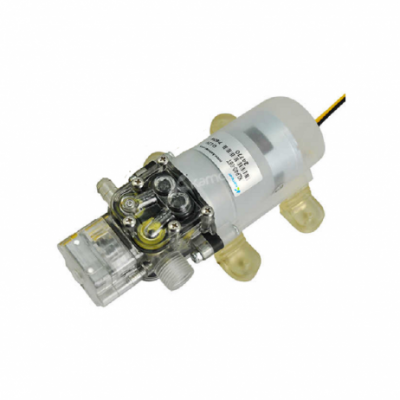

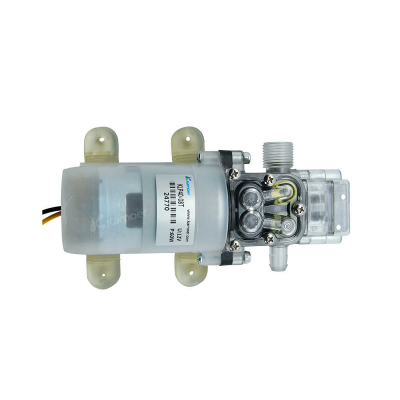

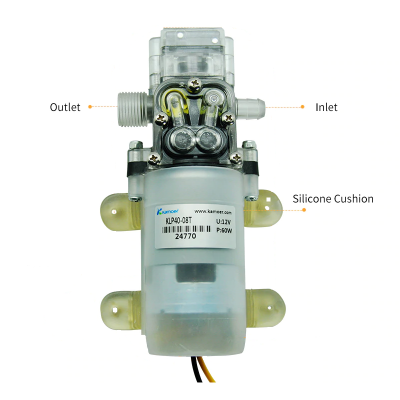

Kamoer KLP40 Series Diaphragm Pump
A versatile liquid pump for various applications
- Brand: Kamoer
- Model: KLP40-08T
- Operating Voltage (VDC): 12
- Operating Current (A): 3.5
- Operating Temperature (C): 0 to 40
- Flow Rate (ml/min): 4000
- Noise Level (dB): 60
- Length (mm): 160
- Width (mm): 97
- Height (mm): 60
- Weight (gm): 600
- Shipment Weight: 0.65 kg
- Shipment Dimensions: 18 x 10 x 7 cm
Top Features:
- Self-Priming
- Low Power Consumption
- Long Life
- Can Run in Dry Condition
The KLP40 series diaphragm pumps from Kamoer are based on a simple principle of the oscillating displacement pump. The rotational power from the motors is converted into vertical movement by an eccentric gearbox. This motion is then transferred to a diaphragm by means of a connecting rod, which in conjunction with an inlet and outlet valve creates a pumping action.
The KLP40 type liquid pumps can be mounted in any position and can deliver up to 4000ml/min when operated on 12V. Ideal for applications such as garden watering systems, car washing, aquarium water pumping, water purifier equipment, and water supply in various machine tools.
Package Includes: 1 x Kamoer 12V 3.5A 4000ml/min tube liquid diaphragm pump Model KLP40-08T
* Images are for illustration only; actual product may vary.
