K78L12-500R3 Series High Efficiency Switching Regulators
Ideal substitutes for LM7812 series with high efficiency and short circuit protection.
- Input Voltage Range: 15-36Vdc
- Nominal Voltage: 24Vdc
- Output Voltage: 12V
- Output Current: 500mA
- Wattage: 0.5W
- Isolation: No
- Package: SIP
Features:
- High efficiency up to 95%
- No-load input current as low as 0.2mA
- Operating ambient temperature range: -40°C to +85°C
- Negative output available
The K78L12-500R3 series are high efficiency switching regulators that serve as ideal substitutes for LM7812 series three-terminal linear regulators. These converters feature high efficiency, low loss, short circuit protection, and positive or negative output voltage. They do not require a heat sink, making them suitable for various applications including industrial control, instrumentation, and electric power.
Package Includes:

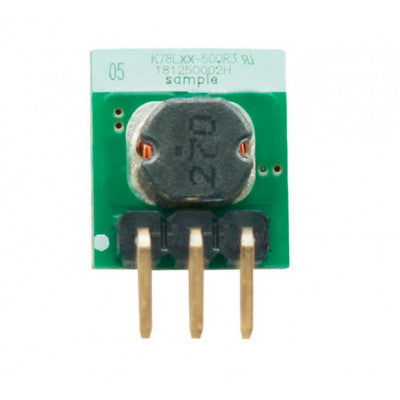

1 x K78L12-500R3 Mornsun +12V/-12V Output DC-DC Converter 0.5W High Efficiency Switching Regulator Module - SIP Package
Images are for illustration only; actual product may vary.
