K78(L)04-1000R3 Series High Efficiency Switching Regulators
Ideal substitutes for LM7804 series linear regulators with high efficiency and low loss.
- Input Voltage Range: 8-36Vdc
- Nominal Voltage: 24Vdc, 12Vdc
- Output Voltage: +4V, -4V
- Output Current: 1000mA
- Wattage: 1W
- Isolation: No
- Package: SIP
Features:
- High efficiency up to 85%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40°C to +85°C
- Supports negative output
The K78(L)04-1000R3 series are high efficiency switching regulators that do not require a heat sink. They find wide applications in industrial control, electric power, and instrumentation.
Package Includes:

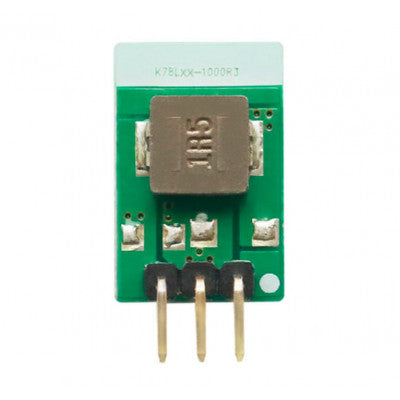

1 x K78L04-1000R3 Mornsun +4V/-4V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package
Download DATASHEET: Download
*Images are for illustration only; actual product may vary.
