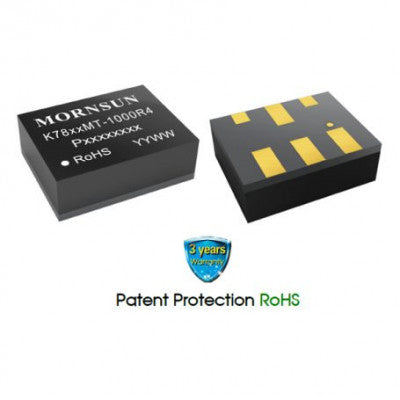

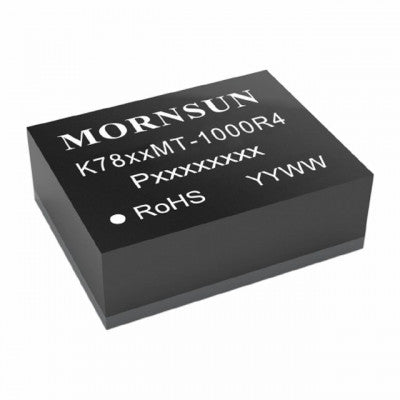

K7815MT-1000R4 Mornsun +15V/-15V Output DC-DC Converter
Ultra-small, ultra-thin DC-DC converter with high efficiency and AEC-Q100 approval
- Spec name: DC-DC Converter
- I/p Voltage range: 18-36vdc for +15V Output, 8-18vdc for -15V Output
- Nominal voltage: 24V/12V DC
- O/p voltage: +15V/-15V
- O/p current: 1000/-300(mA)
- Wattage: 15W
- Isolation: No
- Package: DFN
Top Features:
- Ultra-small DFN package (9.00 x 7.00 x 3.10mm)
- Operating ambient temperature range: -40 to +105 Deg C
- High efficiency up to 94%
- No-load input current as low as 0.1mA
Package Includes: 1 x K7815MT-1000R4 Mornsun +15V/-15V Output DC-DC Converter 15W Power Supply Module - Ultra Small DFN SMD Package
Download DATASHEET
Images are for illustration only; actual product may vary.
