K7815-500R3 Series High Efficiency Switching Regulators
Ideal substitutes for LM7815 series linear regulators with high efficiency and short circuit protection.
- Input Voltage Range: 19-36Vdc
- Nominal Voltage: 24Vdc
- Output Voltage: 15V
- Output Current: 500mA
- Wattage: 0.5W
- Isolation: No
- Package: SIP
Top Features:
- High efficiency up to 95%
- No-load input current as low as 0.2mA
- Operating temperature range: -40°C to +85°C
- Output short-circuit protection
The K7815-500R3 series are high efficiency switching regulators, serving as ideal substitutes for LM7815 series linear regulators. These converters boast high efficiency, low loss, and short circuit protection. They support both positive and negative output voltages and eliminate the need for a heat sink. Widely used in industrial control, instrumentation, and electric power applications.
Pin-out compatible with LM78XX linear regulators and approved by IEC60950, UL60950, and EN60950 standards.
Package Includes:

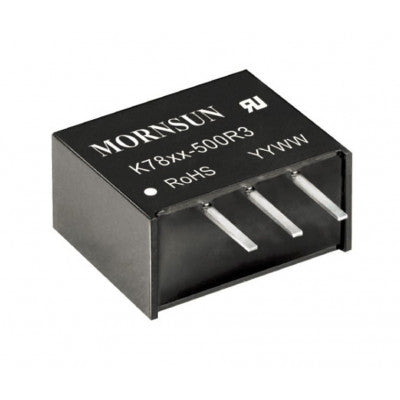

- 1 x K7815-500R3 Mornsun +15V/-15V Output DC-DC Converter 0.5W Power Supply Module - SIP Package
Images are for illustration only; actual product may vary.
