K7815-2000R3 Series High Efficiency Switching Regulators
Ideal substitutes for LM7815 series linear regulators with high efficiency and no need for a heat sink.
- Input Voltage Range: 18-36Vdc
- Nominal Voltage: 24Vdc
- Output Voltage: 15V
- Output Current: 2000mA
- Wattage: 2W
- Isolation: No
- Package: SIP
Features:
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40°C to +85°C
- Output short-circuit protection
The K7815-2000R3 series are high efficiency switching regulators that are perfect for applications in industrial control, instrumentation, and electric power. These converters offer high efficiency, low loss, and eliminate the need for a heat sink, making them a reliable choice for various projects.
With EN62368 approval and pin compatibility with LM78XX series linear regulators, these regulators provide a seamless transition for your designs. The converters are designed to deliver stable and efficient power, ensuring optimal performance in your applications.
Package Includes:

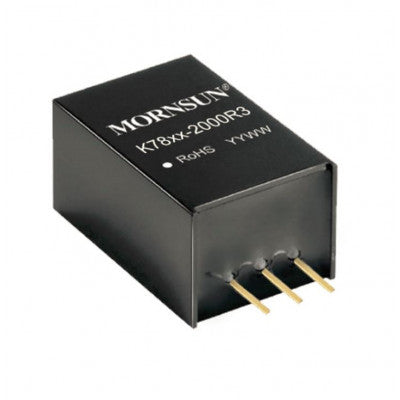

- 1 x K7815-2000R3 Mornsun 24V to 15V DC-DC Converter 2W Power Supply Module - SIP Package
Download the datasheet for more detailed information on the product specifications and capabilities.
Images are for illustration only; actual product may vary.
