K7809MT-500R4 Series High Efficiency Switching Regulators
Compact DFN package with high efficiency and short-circuit protection
- I/p Voltage range: 12-36vdc
- Nominal voltage: 24Vdc
- O/p voltage: 9V
- O/p current: 500(mA)
- Wattage: 0.5W
- Isolation: No
- Package: DFN
Top Features:
- Ultra-small, ultra-thin DFN package (9.00 x 7.00 x 3.10mm)
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 92%
- No-load input current as low as 0.1mA
The K7809MT-500R4 series are high efficiency switching regulators designed for applications such as industrial control, instrumentation, and electric power. These converters feature high efficiency, low loss, and short-circuit protection in a compact DFN package.
Package Includes:

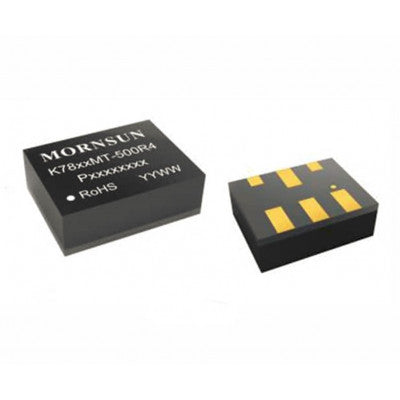

1 x K7809MT-500R4 Mornsun +9V/-9V Output DC-DC Converter 0.5W Power Supply Module - Ultra Small DFN SMD Package
* Images are for illustration only; actual product may vary.
