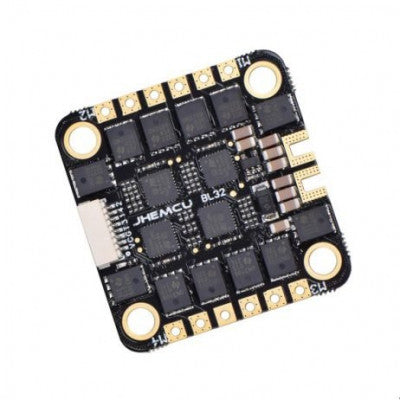

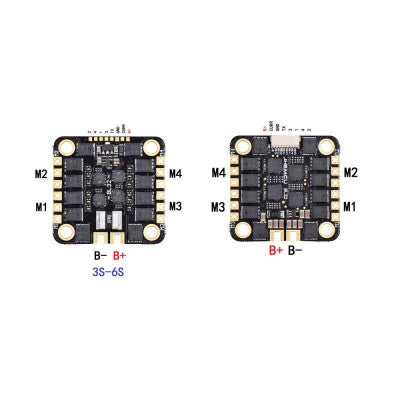

BLHELI_S BL32- 55A 4IN1 3-6S ESC
A digital signal ESC designed for multi-axis UAV transition machines.
- Model: JHEMCU BS-55A ESC
- Supports: Oneshot / Multishot / Dshot, BLHELI-32 PWM control signal
- Power supply voltage: 3-6S (12-26V)
- Continuous working current: 55A
- BEC: No built-in 5V BEC output
- Firmware: BLHELI 32 ESC
- Mounting hole spacing (mm): 30.5 * 30.5MM
- Weight (gm): 10.9
Features:
- 32Bits ARM Cortex MCU STM32F051 48MHZ CPU
- Strong anti-interference ability
- PCB adopts 6-layer, low inner resistance
- Built-in Current detection module, can detect current value
The BLHELI_S BL32- 55A 4IN1 3-6S ESC is a completely digital signal, designed for multi-axis UAV transition machines. It offers accurate speed control and signal acquisition. The ESC uses a 32-bit ARM Cortex MCU STM32F051 48MHZ processor with 2048-level throttle resolution and a unique algorithm control for strong anti-interference ability. You can easily upgrade the firmware online or change configuration parameters via the signal line.
The ESC comes with a current sensing module that can cooperate with flight control to detect current value. It adopts an adaptive control system and is compatible with most motors on the market. The PCB board features a 6-layer design with low inner resistance, optimized component layout, and easy installation.

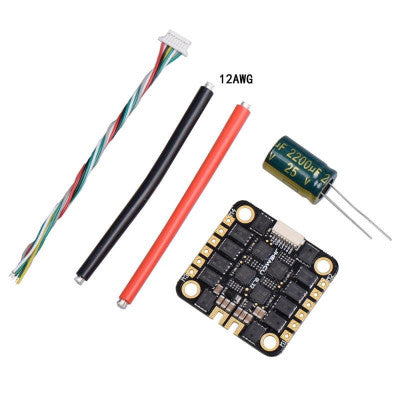

Package Includes:
- 1 x JHEMCU 55A 4IN1 3-6S ESC
- 2 x Wire 12AWG 100mm (Red + Black)
- 1 x 2200F 25v Capacitor
- 1 x Connecting Cable
*Images are for illustration only; actual product may vary.
