JGB37-520 DC Gear Motor
High-performance 12V reduction motor for small smart devices
- Model: JGB37-520-7
- Rated Voltage: 12V
- Revolving Speed: 60RPM
- Rated Torque: 0.15 kg. cm
- Stall Torque: 0.6 kg. cm
- Rated Current: 100 mA
- Stall Current: 1.2A

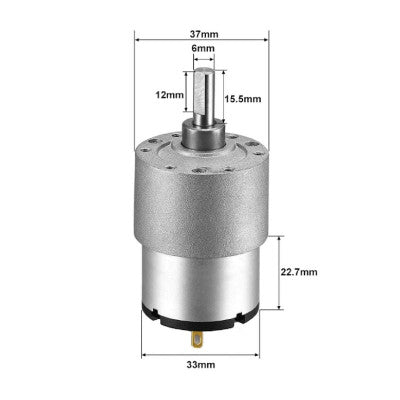

- Total Length(LxWxH): 77x37x37mm
- Gear Material: Full Metal
- Shaft Size: 6 x 15mm(D*L)
- Gearbox Length(L): 27mm
- Shaft Type: D Type
Features:
- Low speed, low noise, high torque
- Pure copper winding for low heat generation
- Metal gearbox for wear and rust resistance
- Thickened magnet for strong magnetic field
Equipped with a brushed motor, this DC motor offers stability and durability. The high performance and excellent electrical conductivity enhance the product's service life, making it suitable for various applications such as vending machines, slot machines, automatic doors, toys, and more.
This JGB37-520 DC gear motor is versatile with a wide range of operating voltages and speeds, making it ideal for almost any project requiring a reduction motor for small smart device parts.
Package Includes: 1 x JGB37-520 DC12V 60RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor
* Images are for illustration only; actual product may vary.
