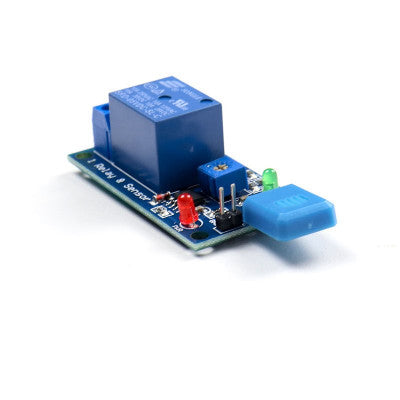

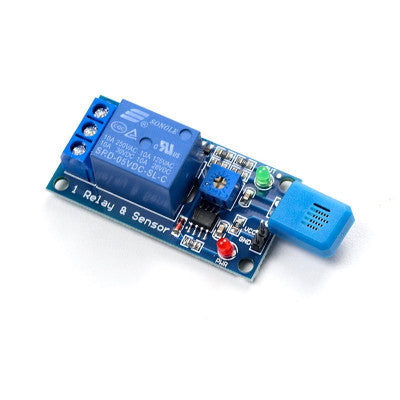

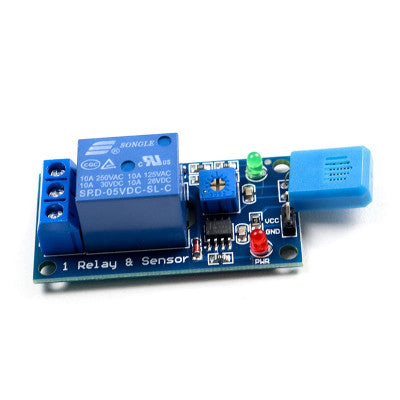

Humidity Sensitive Switch Relay Module
A high-quality module with HR202 sensor for humidity detection and relay control.
- Maximum Voltage: 250V AC
- Supply Current: 150mA
- Trigger Voltage: 5V DC
- Switching Voltage (AC): 250V @ 10A
- Switching Voltage (DC): 30V @ 10A
- Opt. Relative Humidity: 20% - 85%
- Storage Condition: -65 to 125°C
- Operating Temperature: -40 to 80°C
- Length: 64mm
- Width: 26mm
- Height: 17mm
- Weight: 16g
Key Features:
- HR202 humidity sensor
- Relay for 220V AC connection
- Potentiometer for threshold adjustment
- Pin and wet sensor interface
The Humidity Sensitive Switch Relay Module is designed with a high-quality HR202 humidity sensor. It features a comparator output that directly controls the relay for connecting to 220V AC or other equipment. The module also includes a potentiometer for adjusting the detection threshold. Additionally, the sensor interface can be equipped with a pin and a wet sensor with a lead.
Package Includes: 1 x Humidity Sensitive Switch Relay Module
*Images are for illustration only; actual product may vary.
