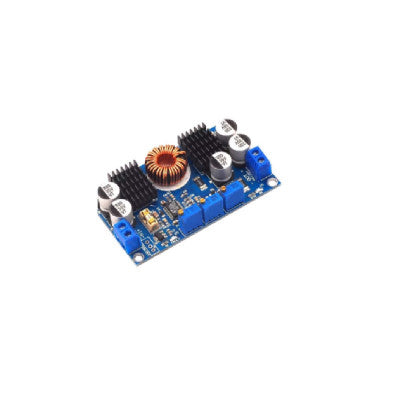

HOT LTC3780 DC-DC 5V-32V to 1V-30V 10A Automatic Stepdown Regulator
High-efficiency automatic voltage regulator with perfect protection function
- Input voltage: DC5-32V
- Output voltage: DC1V-30V continuously adjustable; the default 12V shipment
- Output current: 10A (MAX), long term within 8A
- Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation
- Output ripple: 50mV (12V turn to 12V, 5A measured)
- Short circuit protection: YES
- Input reverse connection protection: No
- Output prevent reverse connection protection: No
- Operating temperature range: -45 ~ +85
- Size: 77.6*46.5*15mm
- Model: DC011-LTC3780
- Supply Voltage: DC 5V-32V
- Output Voltage: DC 1V-30V
- Dimension: 7.8 x 4.6 x 1.5 cm
Top Features:
- Replaceable fuse for input protection
- Low resistance, high-frequency capacitor for ripple reduction
- Constant voltage, constant current, under-voltage protection
- Error indicating lamp for output voltage monitoring
This high-efficiency automatic voltage regulator ensures a constant output voltage regardless of the input voltage variation. It is suitable for various applications such as notebook power, vehicle power supply, and solar charging.
The device features three protection functions: under-voltage protection, constant current, and constant voltage to keep the output stable. It also includes an error indicating lamp for fault detection.
The LTC3780 DC-DC regulator has a compact size of 77.6*46.5*15mm, making it suitable for different projects. With a maximum output current of 10A and output power of 80W, it provides reliable performance for various applications.
Package Includes: 1 x HOT LTC3780 DC-DC 5V-32V to 1V-30V 10A Automatic Step-Down Regulator
* Images are for illustration only; actual product may vary.
