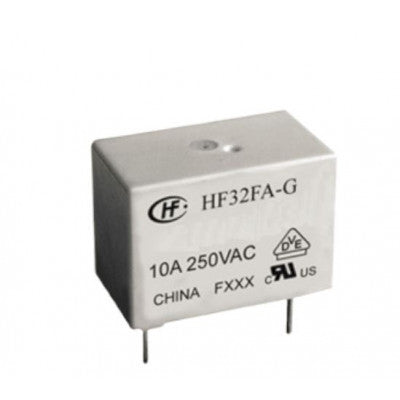

Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay
Compact and reliable power relay with 10A switching capability and UL insulation system.
- Type: HF32FA-G/048-HT
- Switching Current (A,Res.load): 10A
- Contact arrangement: 1 Form A
- Coil version: single contact
- Terminal Type: type 1 terminal
- Mounting: PCB-THT
- Construction: unsealed
- Terminals: type 1 terminal
- Contact material: AgSnO2
- Coil voltage: 48
- Coil power: Approx. 0.45W
- Insulation standard: Class F
- Coil voltage form: DC
- Rated voltage(V): 250VAC
- Volume(mm³): 17.6×10.1×12.7 (mm)
Features:
- 10A switching capability
- Creepage/clearance distance >8mm
- 5kV dielectric strength (between coil and contacts)
- UL insulation system: Class F
The Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay is a compact and reliable relay suitable for various applications. It meets VDE 0700, 0631 reinforce insulation standards and is in accordance with IEC 60335-1. The relay has a coil voltage of 48 and a switching current of 10A, making it ideal for different types of loads.
Package Includes:
- 1 x Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay
Images are for illustration only; actual product may vary.
