Miniature High Power Relay
Low height, 8A switching capability, 5kV dielectric strength, RoHS compliant
- Brand: Hongfa
- Coil Voltage (DC): 24 V
- Contact Arrangement: 2 Form C
- Contact Current Rating: 8 A
- Termination: PCB
- Construction: Plastic sealed
- Mounting: DIP
- Contact Capacity: AgNi+Au plated
- Contact Plating: Au plated
- Release Time: < 4ms
- Coil Power: 200mW
- Insulation Resistance: 1000MOhm
- Dielectric Strength (between coil & contacts): 2000VAC 1min
- Operate Time: < 7ms
- Ambient Temperature: -40~85°C
- Max Switching Voltage (VDC): 120VDC
- Max Switching Voltage (VAC): 240VAC
- Max Switching Current (AC): 24AC
- Weight: 5gm
- Electrical Endurance: 100000
- Size: 20.0x10.0x11.5mm
- Mechanical Endurance: 100000000
Features:
- 8A switching capability
- 5kV dielectric strength
- Low height: 12.5 mm
- Creepage distance >8mm
Package Includes:

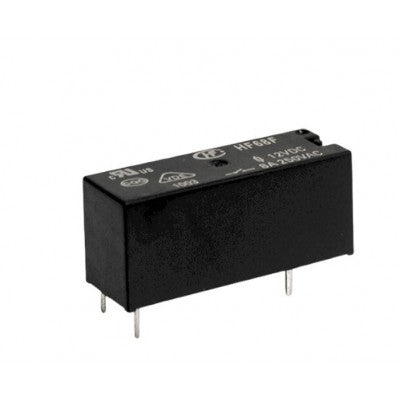

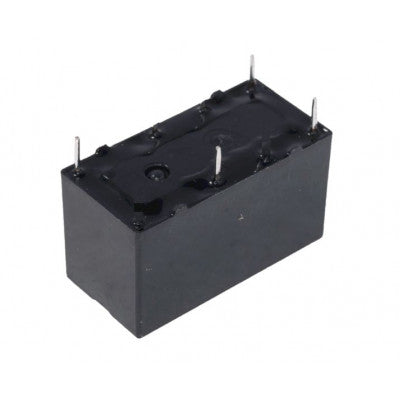

- 1 x Hongfa 24V 8A DC HF68F/024-1HSB 4 Pin High Power SPST Relay
* Images are for illustration only; actual product may vary.
