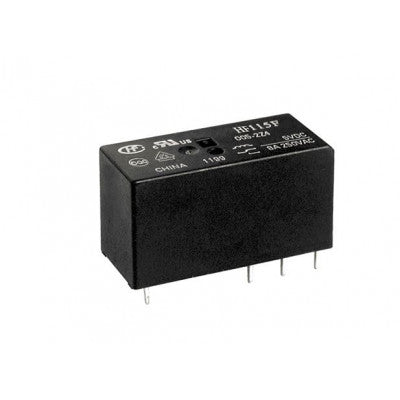

Hongfa 24V 8A DC HF115F/024-2HS4 6-Pin DPST PCB Mount Power Relay
Compact power relay with 16A switching capability and 5kV dielectric strength.
- Type: HF115F/024-2HS4
- Switching Current (A,Res.load): 8A
- Contact arrangement: 2 Form A
- Coil version: single contact
- Terminal Type: PCB
- Mounting: PCB-THT
- Construction: Plastic sealed
- Terminals: 5.0mm 2 pole 8A
- Contact material: AgCdO
- Sort: Standard
- Coil voltage: 24V
- Coil power: Approx 0.4W
- Insulation standard: Class B
- Coil voltage form: DC
- Rated voltage(V): 250VAC
- Volume(mm³): 29.0×12.7×15.7 (mm)
Top Features:
- Low height: 15.7 mm
- 16A switching capability
- 5kV dielectric strength
- Creepage distance: 10mm
The Hongfa 24V 8A DC HF115F/024-2HS4 6-Pin DPST PCB Mount Power Relay is a reliable solution for your power switching needs. It meets VDE 0700, 0631 reinforce insulation standards and is in accordance with IEC 60335-1. Sockets and plastic sealed types are available for added convenience.
Package Includes: 1 x Hongfa 24V 8A DC HF115F/024-2HS4 6-Pin DPST PCB Mount Power Relay
* Images are for illustration only; actual product may vary.
