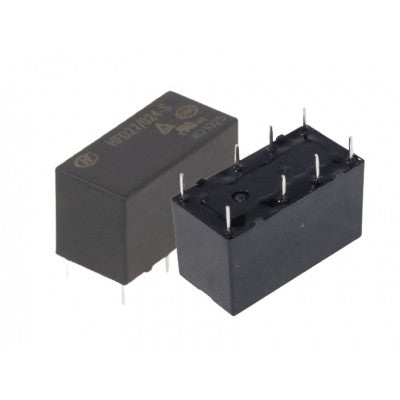

Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay
Subminiature signal relay with 125VA/60W switching capacity and RoHS compliant.
- Manufacturer: HONGFA RELAY
- Type of relay: Electromagnetic
- Contacts configuration: DPDTR
- Rated coil voltage: 24V DC
- AC contacts rating @R: 1A / 125V AC (at resistive load)
- DC contacts rating @R: 2A / 30V DC (at resistive load)
- Contact current max: 2A
- Switched voltage: max. 120V DC to max. 240V AC
- Relay variant: Subminiature
- Mounting: PCB
- Coil resistance: 2.88kΩ
- Coil voltage min: 18V DC
- Coil voltage max: 48V DC
- Operate time: 7ms
- Body dimensions: 20.2x10x11.5mm
- Release time: 4ms
- Coil power consumption: 200mW
- Operating temperature: -40...85°C
- Contact resistance: 100mΩ
- Contact material: AgNi + Au
- Terminal pitch: 5.08mm
Top Features:
- Bifurcated contacts
- Environmentally friendly (RoHS compliant)
- Epoxy sealed for automatic-wave soldering
- Cleaning resistant
Package Includes: 1 x Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay
Images are for illustration only; actual product may vary.
