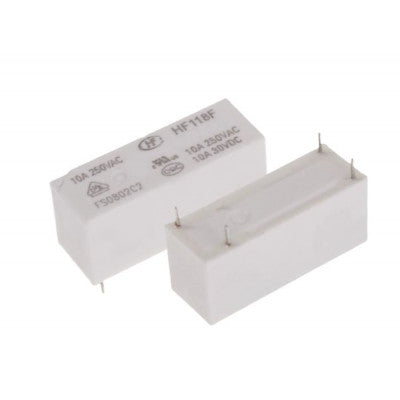

Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay
Low height, 10A switching capability, 5kV dielectric strength, RoHS compliant
- Type: HF118F/024
- Coil nominal voltage: 24 V DC
- Min. pick-up voltage: 16.8 V DC
- Max. pick-up voltage: 36 V DC
- Control mode: monostable, 1 coil
- Resistance (coil): 2350 ?
- Contact type: 1 Form A
- Contact material: AgNi
- Switching voltage (max.): 125 V DC, 440 V AC
- Switching current (max.): 10 A
- Max. switching capacity: 300 W, 2500 VA
- Connection: Solder pins
- Min. temperature: -40 °C
- Max. temperature: +85 °C
- Weight: 8gm
- Dimension: 28.5 x 10.1 x 12.5 (in mm)
- RoHS-compliant: Yes
- Product type: PCB relay
Features:
- 10A switching capability
- 5kV dielectric strength
- Low height: 12.5 mm
- Creepage distance >8mm
10 mm narrow and 12.5 mm high power relay for applications in which the switching capacity of conventional signal relay is not sufficient anymore. Meets the VDE 0700 and corresponds to the insulation requirements according to VDE 0631.
Product in accordance with IEC 60335-1 available. 1 pole configurations available. UL insulation system: Class F. Plastic sealed and flux-proofed types available.
Package Includes:
- 1 x Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay
*Images are for illustration only; actual product may vary.
