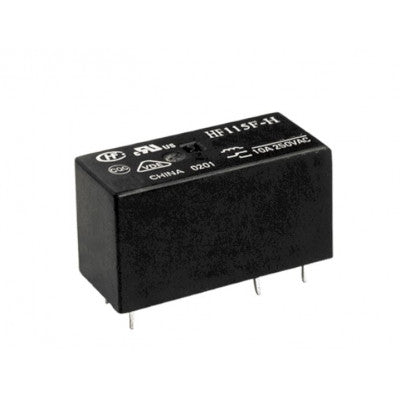

Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay
High sensitive power relay with low height and 5kV dielectric strength.
- Type: HF115F-H/024-1ZS3B
- Switching Current (A,Res.load): 10A
- Contact arrangement: 1 Form C
- Coil version: single contact
- Terminal Type: PCB
- Mounting: PCB-THT
- Construction: Plastic sealed
- Terminals: 5.0mm 1 pole
- Contact material: AgNi
- Coil voltage: 24V
- Coil power: Approx 0.25W
- Insulation standard: Class F
- Rated voltage(V): 250VAC
- Volume(mm³): 29.0×12.7×15.7 (mm)
Features:
- High sensitive: 0.25W
- Low height: 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
Sockets available. Product in accordance to IEC 60335-1 available. Plastic sealed and flux proofed types available.
Package Includes:
1 x Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay
Images are for illustration only; actual product may vary.
