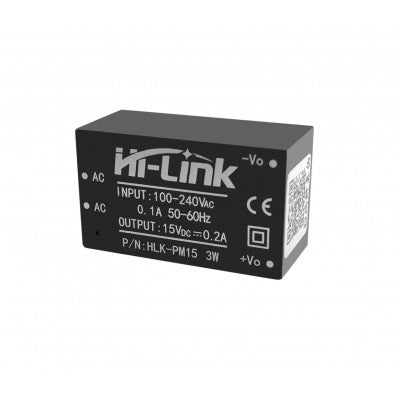

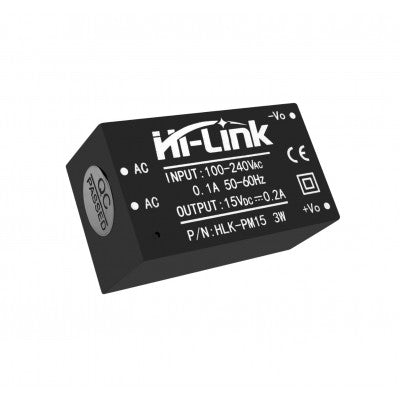

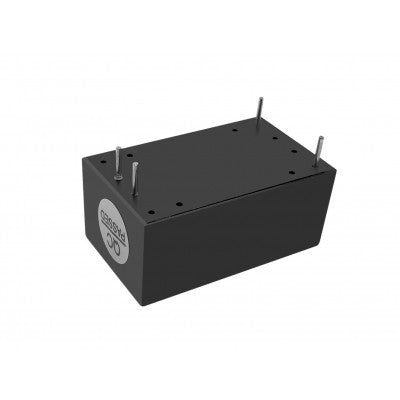

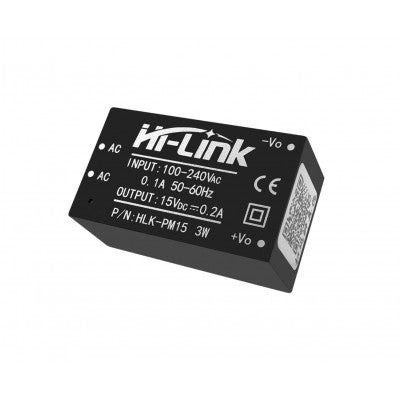

HLK-PM15 Hi-Link 15V 3W AC to DC Power Supply Module
A plastic enclosed PCB mounted isolated switching step-down power supply module.
- Brand: Hi-Link
- AC Input Voltage Range(V): 100-240
- Color: Black
- Output Power (W): 3
- Output Voltage (V): 15
- Input surge current: More than 10 A
- Output Current (mA): 200
- Maximum input current: More than 0.2 A
- Relative humidity: 5 to 95%
- Load Regulation: +/- 0.5
- Working Temperature: -25 to +60C
- Operation Temperature: -20 to +60 deg C
- Dimension(mm): 35 x 20 x 15
- Weight(gm): 18
Features:
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
Environmental conditions:
- Technical indicators: Single bit
- Working temperature: -25-60 deg Celsius
- Storage temperature: -40-80 deg Celsius
- Relative humidity: 5-95%
- Heat Dissipation Mode: Natural cooling
- The atmospheric pressure: 80-106Kpa
* Images are for illustration only; actual product may vary.
