H11L1 Optocoupler with Schmitt Trigger Output
Optically coupled optocoupler with high isolation and Schmitt Trigger output

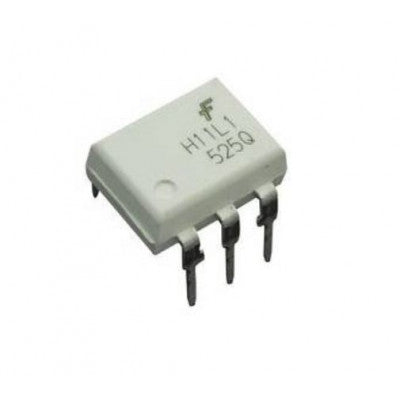

The H11L1 consists of a Schmitt Trigger optically coupled to a gallium arsenide Infrared-emitting diode in a 6-lead DIP package with different lead forming options.
- Isolation voltage: 5000 VRMS
- Operating temperature: -55 ~ +100 °C
- Forward current: 60 mA
- Power dissipation: 100 mW
- Peak transient current: 1 A
- Reverse Voltage: 6 V
- Output Voltage: 0 to 16 V
- Storage temperature range: -55 to +150 °C
- Lead Solder Temperature: 260 for 10 sec °C
- Supply Voltage: 3 to 16 V
- Output Current: 50 mA
- Pack/Unit: 6-lead DIP package
Top Features:
- High 5000 VRMS isolation
- DC input with Schmitt Trigger output
- 1MHz(NRZ) data rate
- RoHS and REACH compliance
Applications:
- Line Receiver
- Logic to Logic Isolator
- Microprocessor system interface
- AC to TTL conversion
For more details or bulk pricing, please contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
