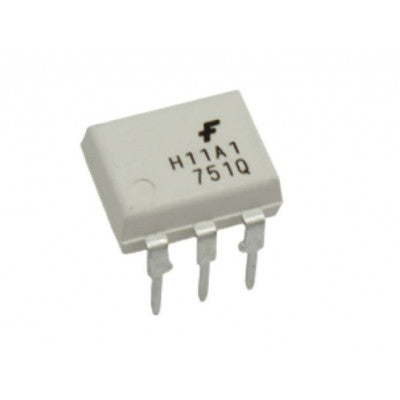

H11A1 Single Channel Photo Transistor Coupler
An industry standard optocoupler with high isolation performance
- Reverse voltage: 6 V
- Forward current: 60 mA
- Surge current: 2.5 A
- Power dissipation: 100 mW
- Collector-emitter breakdown voltage: 70 V
- Emitter-base breakdown voltage: 7 V
- Collector current: 100 mA
- Junction temperature: 100 °C
- Packaging: Available in lead formed configuration for surface mounting
Top Features:
- Interfaces with common logic families
- Low input-output coupling capacitance (< 0.5 pF)
- Industry standard dual-in line 6-pin package
- Isolation rated voltage: 4420 VRMS
The H11A1 is a single channel photo transistor coupler featuring a gallium arsenide infrared LED and a silicon NPN photo transistor. Its high isolation performance is achieved through a double molding isolation manufacturing process, ensuring compliance with DIN EN 60747-5-5 partial discharge isolation specifications. With an ISO 9001 quality program, this optocoupler offers the highest isolation performance in a commercial plastic photo transistor.
Available in lead formed configuration for surface mounting, the H11A1 can be supplied on tape and reel or in standard tube shipping containers. This optocoupler is ideal for AC mains detection, reed relay driving, switch mode power supply feedback, telephone ring detection, logic ground isolation, and logic coupling with high frequency noise rejection.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
