Board Mount Humidity Sensors
An integrated environmental sensor for mobile applications with compact size and low power consumption.
- Operating Voltage (VDC): 1.8 ~ 5
- Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
- Operating Temperature Range (C): -40 to 85
- Operating Humidity Range: 0-100%
- Operating Pressure Range: 300-1100 hPa
- Resolution: Temperature: +-1C, Humidity: +-3%, Pressure: +-1Pa
- I2C Address: SDO LOW: 0x76, SDO HIGH: 0x77
- Length (mm): 12
Features:
- Designed for mobile applications
- Precision sensor for pressure, temperature, and humidity
- Supports both I2C and SPI interfaces
- Compact size with dimensions 12mm x 10mm x 2mm
The BME280 is a great new chip that was originally designed for the next generation of smartphones. With an I2C connection, you have access to enough weather data to make some pretty good predictions for your local area. The precision sensor is soldered onto the PCB, allowing for accurate measurements of pressure, temperature, and humidity.
Not only can the BME280 measure pressure and temperature, but it can also accurately measure humidity. The sensor supports both I2C and SPI interfaces, making it versatile for various applications.
Applications:
- Context awareness, e.g. skin detection, room change detection
- Fitness monitoring/well-being
- Warning regarding dryness or high temperatures
- Measurement of volume and airflow
- Home automation control
- Control heating, ventilation, air conditioning (HVAC)
- Internet of things
- GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)

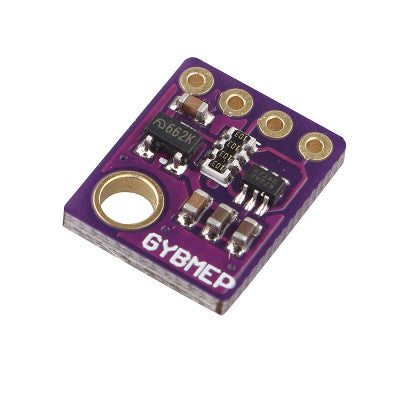

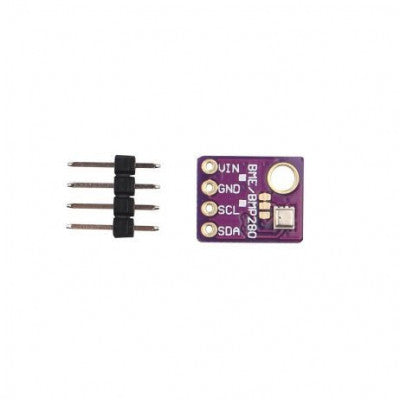

Package Includes: 1 x GY-BME280-5V Temperature and Humidity Sensor
* Images are for illustration only; actual product may vary.
