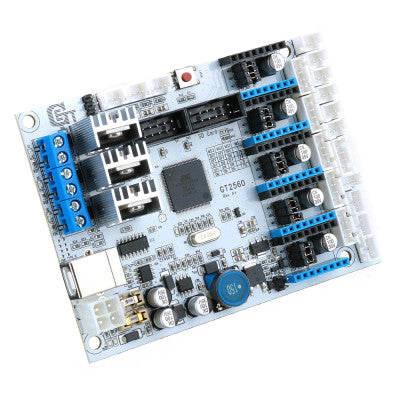

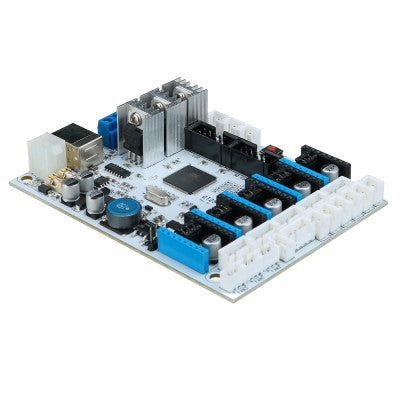

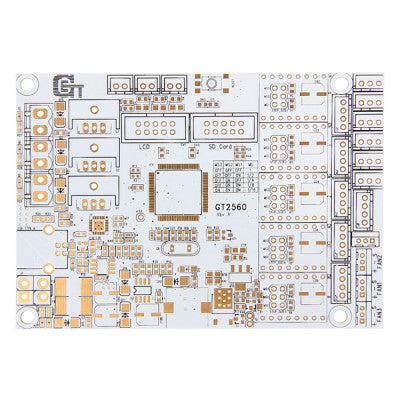

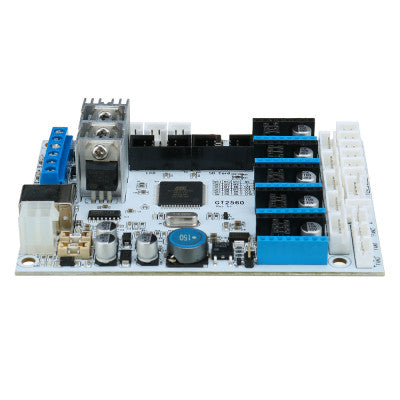

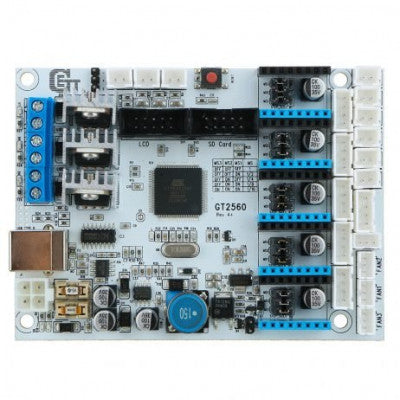

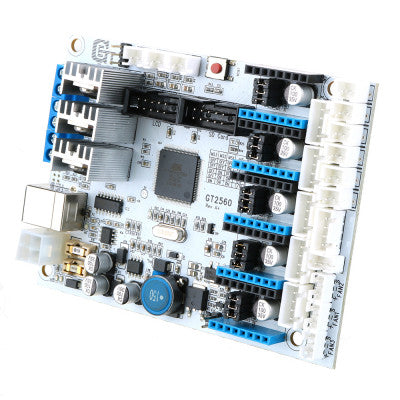

GT2560 Control Board
A compact board with the power of Mega2560 + Ultimaker integration.
- Processor: ATmega2560
- Memory: 256k
- Operating Frequency: 16MHz
- USB Serial Converter: FT232RQ
- Stepper Motors: 5
- Operating Voltage: 12V-24V
- Output: 90W to MOSFET
- Package Included: 1 x GT2560 Main board
Top Features:
- Compact size with powerful functionality
- ATmega2560 main control chip
- Double power supply design
- Support for LCD and SD card interface
The GT2560 is a versatile control board that combines the features of Mega2560 and Ultimaker. It offers streamlined interfaces, compact design, and premium components for efficient 3D printer control. With 5 stepper motors, swappable driving modules, and a high-performance processor, the GT2560 is an ideal choice for your printing needs.
The board supports an operating voltage of 12V-24V and can output 90W to a MOSFET, providing higher torque and rotation rate. It features a double power supply design for heatbed and logical parts separately, with current ratings of 12A and 5A respectively. The GT2560 also includes protection features like SMD fuse tubes, diode reverse protection, and USB port protection.
With three 12V fan outputs, PWM output for lighting equipment, and three temperature sensor inputs, the GT2560 offers versatile connectivity options. It supports 5 A4988 stepper drivers and can be easily configured using dial switches. The board is compatible with Marlin firmware, known for its stability and high performance.
Extend your printing capabilities with the GT2560's LCD and SD card interface, allowing you to print without the need for a PC. Upgrade to the GT2560 control board and experience enhanced control and performance for your 3D printer projects.
*Images are for illustration only; actual product may vary.
