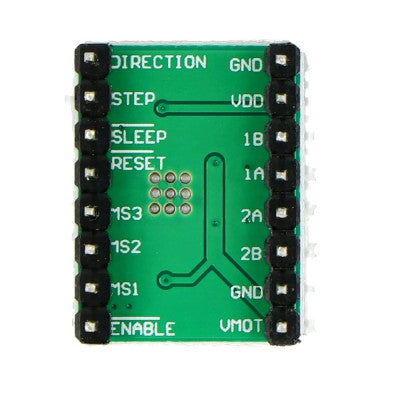

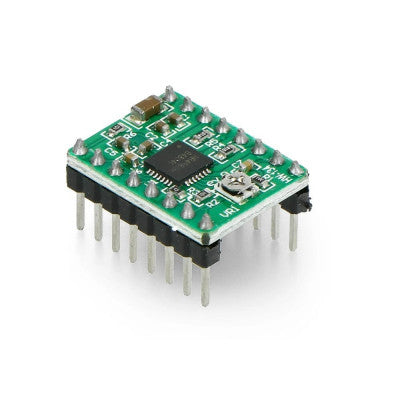

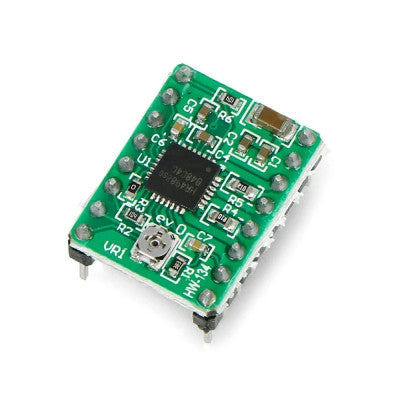

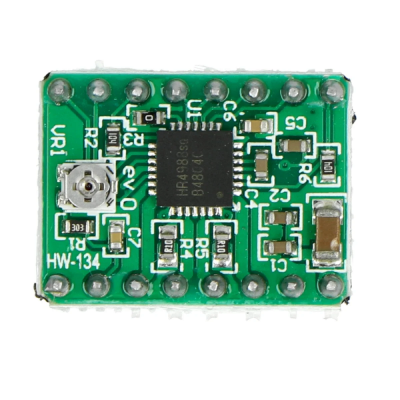

The Green A4988 driver Stepper Motor Driver- Normal Quality
A complete micro-stepping motor driver with built-in converter, easy to operate.
- Operating Voltage: 8V to 35V
- Phase Current: Up to 1A per phase (2A per coil with cooling)
- Current Regulator: Fixed off-time
- Decay Mode: Slow or mixed decay
- Control Interface: No phase sequence tables or high-frequency programming
-
Features:
- Automatic current decay mode detection
- Internal UVLO and thermal shutdown
- Improved PWM power consumption
- Surface mount QFN package
The A4988 driver Stepper Motor Driver includes a fixed off-time current regulator and can operate in slow or mixed decay mode. It is suitable for applications where a complex microprocessor is not available or overloaded. The chopping control automatically selects the current decay mode, reducing motor noise and increasing step accuracy.
Internal circuit protection features thermal shutdown, under-voltage lockout, and crossover current protection. The driver does not require special power-up sequencing. It comes in a compact surface mount package with an exposed thermal pad for heat dissipation.
Attention: Connecting or disconnecting the motor while the driver is powered can damage the system.
Features:
- Automatic current decay mode detection/choice
- Mixed with slow current decay mode
- Internal UVLO (ultra voltage lockout)
- Crossover current protection
- Thermal shutdown circuit
- Ground fault protection
- Loading and short circuit protection
- Optional five-step mode: full, 1/2, 1/4, 1/8, and 1/16
Package Includes:

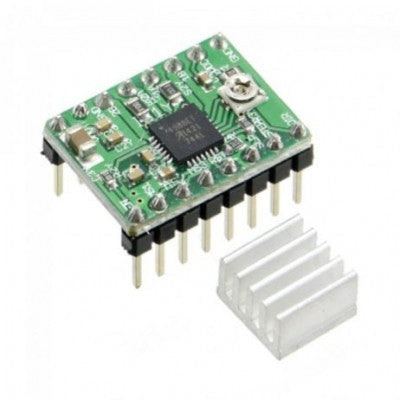

- 1 x Green A4988 driver Stepper Motor Driver- Standard Quality
- 1 x Heat sink
Images are for illustration only; actual product may vary.
