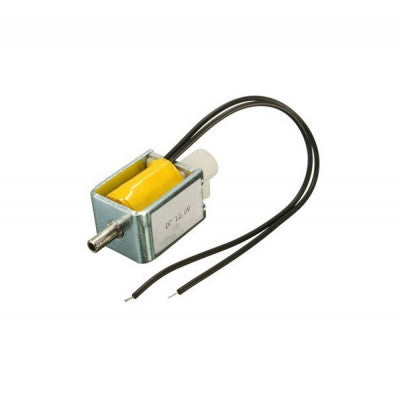

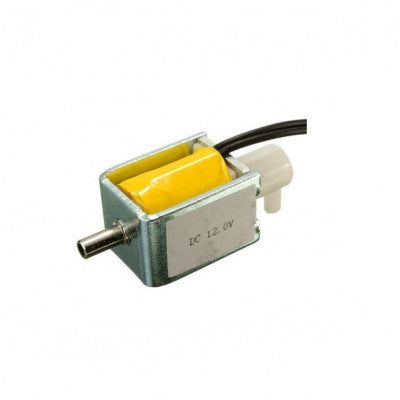

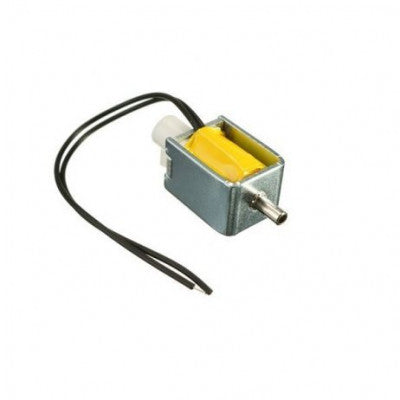

Small Mini Electric Solenoid Valve for Gas Air/Pump Gas Release Exhaust
A small 12V DC valve for controlling gas flow in two positions
- Operating Voltage: 12V DC
- Port Size: 5.5mm (All 3 i/o are of the same size)
- Power: Pneumatic
- Pressure: Vacuum
- Operating Temperature (C): -10 to 60
- Type: Air Valve

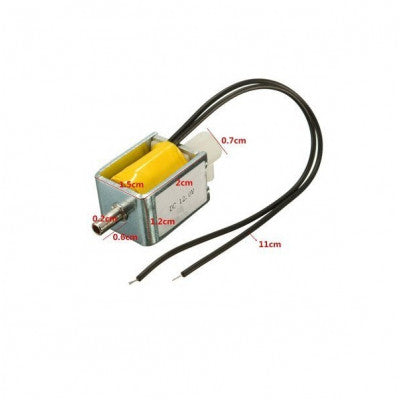

- Length (mm): 35
- Width (mm): 15
Top Features:
- 12V DC operation
- 5.5mm port size
- Pneumatic power
- Vacuum pressure
Control gas flow in and out with this small Gas valve that operates on 12V DC. This valve acts as closed (blocked flow) when not powered. Applying a 5V power supply to the input opens the valve, allowing flow-through. Removing the supply voltage blocks the flow. It is a two-way valve, allowing flow in both directions.
Working Modes:
When powered on, 1 and 2 are connected, 3 and 1,2 are not connected.
When power is off, 1 and 3 are connected, 2 and 1,3 are not connected.
Note: Product Image may vary from the actual product in terms of manufacturer and color according to availability.
Package Includes: 1 x FA0520F 12V DC Solenoid Valve for Air / Gas
Images are for illustration only; actual product may vary.
