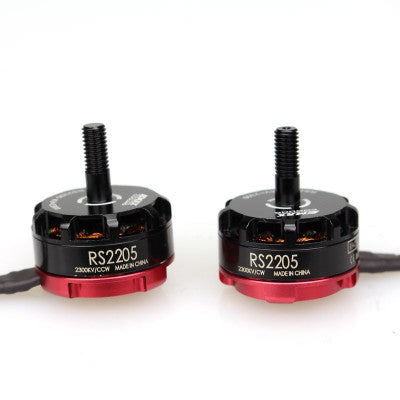

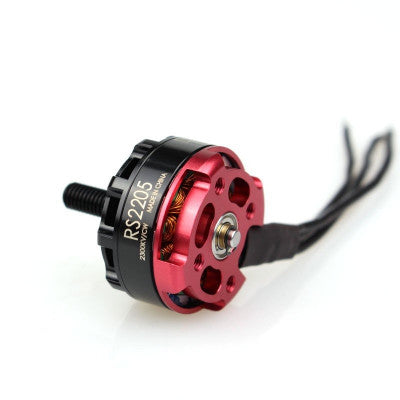

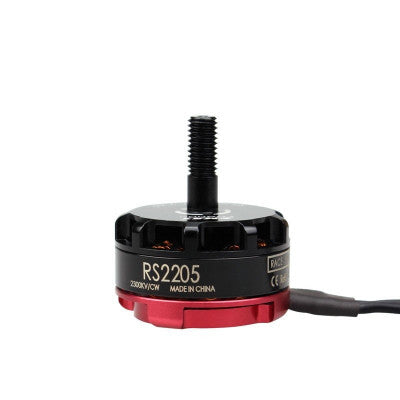

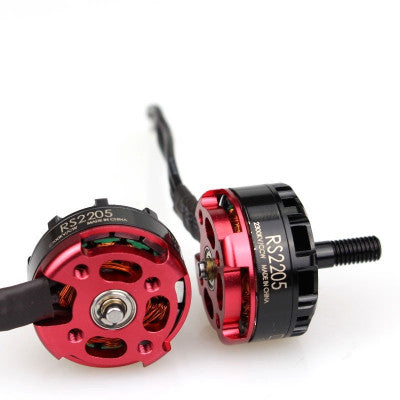

EMAX RS2205 2300KV Brushless DC Motor
High-performance Race Spec series motor for FPV Racing Drone
- Model: RS2205
- Framework: 12N14P
- Motor KV (RPM/V): 2300
- Maximum Thrust (gm): 1024
- Compatible LiPO Batteries: 3S ~ 4S
- Shaft Diameter (mm): 3
- Length (mm): 31.7
- Width (mm): 27.9
- Weight (gm): 30
- Brand: EMAX
Features:
- Up to 1024g thrust with 4s LiPO battery

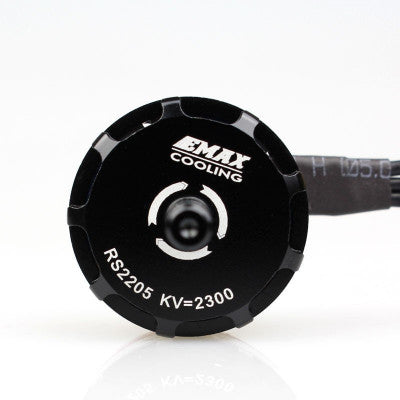

- Cooling design reduces motor temperature by up to 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
EMAX RS2205 2300KV Brushless DC Motor is part of the high-performance Race Spec series designed for FPV Racing Drones. Imported from the original Emax products manufacturers, EMAX motors are known for their quality-oriented manufacturing. Equipped with unique cooling fins, these motors reduce temperature by up to 30% as the motor spins faster. Precision crafted within tight tolerances, these motors provide premium performance in their class.
When paired with high-performance Orange Propellers, this motor delivers excellent thrust and speed. It features highest grade N52 magnets and genuine Japanese NMB bearings. The motor is dynamically balanced in the factory and has a 15mm Extended Prop Shaft allowing the use of virtually any prop with a 5mm hole. The package includes 1 x EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drone.
Note: The BLDC motor rotation is always opposite to the direction of Thread. In this case, the motor rotation direction is CCW, so the Thread tightening direction will be CCW.
* Images are for illustration only; actual product may vary.
