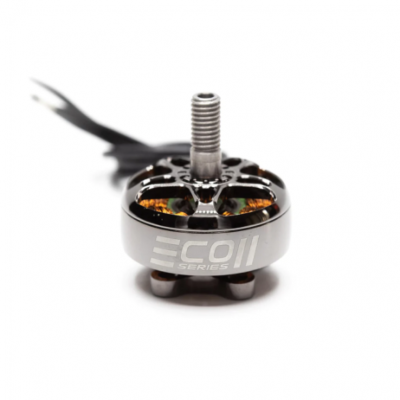

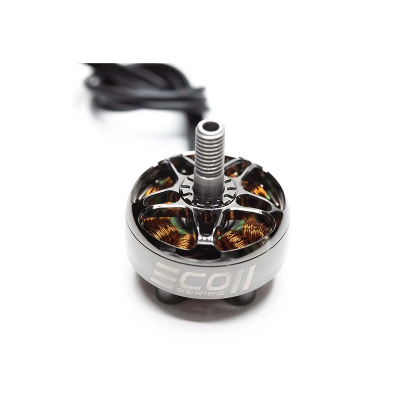

EMAX ECO II Series Brushless Motor
A new line of brushless motors designed for improved performance and durability.
- Motor: 1700kv
- Framework: 12N14p
- Length: 31.5mm
- Diameter: 28mm
- No of Cells: 3-6s
- Max Thrust: 5-5.5
- Weight: 30.4g (w/o silicone wire)
- Prop Adapter Shaft Thread: M5
Features:
- Precision bearing
- Steel shaft
- Anodizing

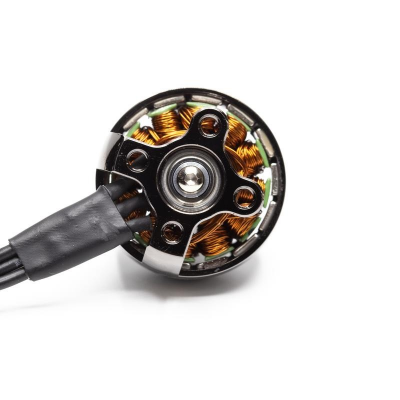

- 16*16mm hole pattern
The engineers at EMAX have redesigned the ECO II Series from the ground up to achieve maximum durability. The motor features a more rounded design with thicker reinforcements, ensuring longevity. The sleek modern design with a reflective surface not only looks great but also enhances durability.
The ECO II motor utilizes N52SH arc magnets for improved performance, providing more powerful throttle response and higher RPMs. With increased torque and thrust, pilots can confidently navigate any racetrack or flight scenario.

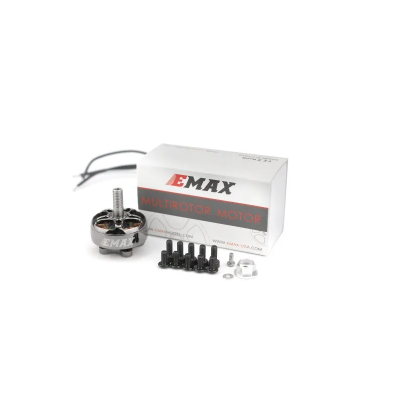

The package includes 5 X M3x8mm Screws, 5 X M3x7mm Screws, 5 X M3x6mm Screws, 1 X Aluminium M5 nylock nut, and 1 X Washer and screw for the shaft.
Images are for illustration only; actual product may vary.
