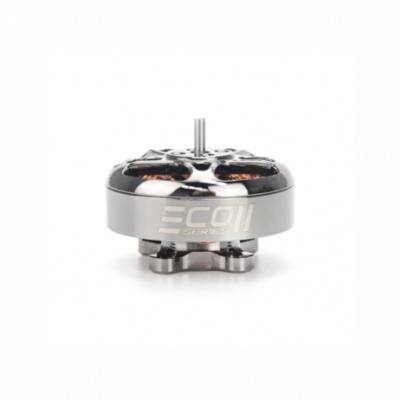

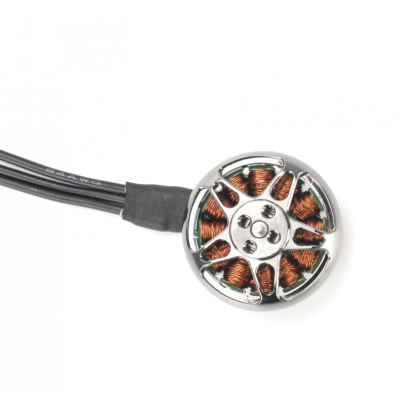

Emax ECOII-2004-3000KV Brushless Motor
The ultimate brushless motor with improved performance and durability.
- KV: 3000
- Framework: 12N14P
- Length: 19.2mm
- Diameter: 24.7mm
- Cells: 4-6S
- Propeller: 4-5
- Prop adapter Shaft Thread: 1.5mm
- Bearing Shaft: 3mm
- Bolt Pattern: M2 (12x12mm)
- Maximum Thrust: 1170g (on 4s)
- Peak Current (6S): 32A
Top Features:
- NSK precision bearing
- Al 7075 base casing
- N52SH arc magnets
- 120mm 24 AWG silicone wire
The engineers at EMAX have redesigned the ECO II Series to enhance performance and durability. The motor features a more rounded design with thicker reinforcements for maximum durability. The use of N52SH arc magnets provides more powerful throttle response and higher RPMs, generating increased torque and thrust for versatile performance on any racetrack or flight situation.
The ECO II Series sets a new standard in affordable brushless motor technology, offering a sleek modern design that combines aesthetics with durability. The motor is designed with a 12*12mm hole pattern, multi-strand winding, and includes 120mm 24 AWG silicone wire for efficient power delivery.

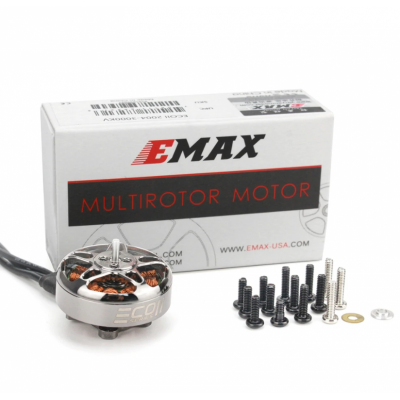

Package Includes: 5 X M2 x 6mm Screw, 5 X M2 x 7.5mm Screw, 3 X M2 x 8.5mm Screw, 1 X Washer and screw for shaft
* Images are for illustration only; actual product may vary.
