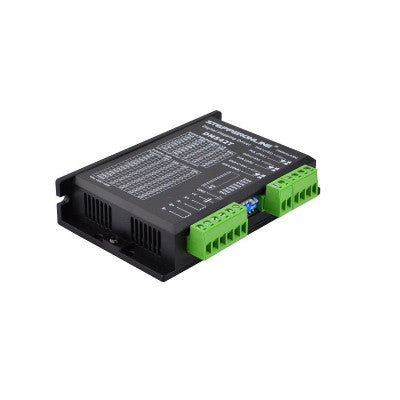

DM542T Digital Stepper Driver
A fully digital stepper driver with advanced DSP control algorithm for optimal torque and smooth movement.
- Chopping Frequency: 20KHz
- Signal Input: Optical isolation
- Output Current: Adjustable DIP switch
- Chopping Method: Bipolar constant current
- Segmentation: 2, 4, 8, 16, 32, 64, 128, 256
- Signal Compatibility: TTL and differential
- Motor Compatibility: NEMA 17 and NEMA 23
Top Features:
- 20KHz chopping frequency
- Optical isolation signal input
- Adjustable output current DIP switch
- High segmentation options
The DM542T is a fully digital stepper driver designed with an advanced DSP control algorithm that ensures optimal torque and smooth movement. It features motor auto-identification and parameter auto-configuration for quick setup with different motors. Compared to traditional analogue drives, the DM542T operates with lower noise, reduced heating, and improved stability. Ideal for high requirement applications, it is recommended for use with NEMA 17 and NEMA 23 motors.
The drive supports two-phase 4-wire, 6-wire, and 8-wire stepper motors with a current rating of 4.5A or less. Its discrete component structure prevents overvoltage issues and ensures reliable performance.
- Package Includes: 1 x DM542 Digital Stepper Motor Driver
*Images are for illustration only; actual product may vary.
