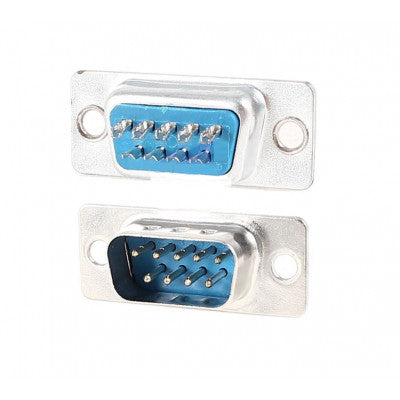

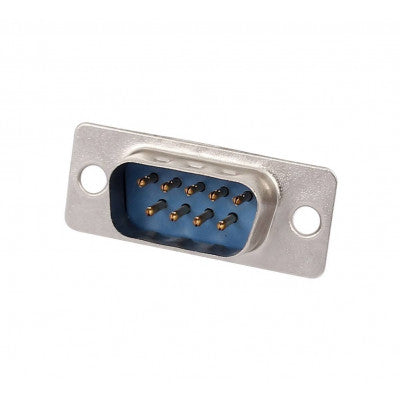

DB9 Male Welded Connector
The most common type of electrical connector for computer and communication devices.
- Connector Type: DB-9
- Connector: Male
- Voltage Rating (V): 250V AC
- Current Rating (A): 5
- Insulation Resistance (M): 1000
- Contact Resistance: 20m
- Operating Temperature Range (C): -55 to 125
- Material: Metal and plastic
- Length (mm): 30
- Width (mm): 12
- Height (mm): 15
- Weight (gm): 3
Top Features:
- Solder cup configuration for longevity
- Nickel-plated terminals
- Gold plated pins
- Good quality
The DB9 connector is part of the D-sub miniature (D-sub) connector plug and socket family. DB9 pins are arranged in rows of two, with one five-pin row above a four-pin row. Designed to work with the EIA/TIA 232 serial interface standard, DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, and joysticks. While modern interfaces have replaced DB9 in many applications, legacy devices still use it for serial communication.
Applications:
- Network ports
- Computer video output
- Game controller ports
- Linear and rotary encoders in industries
Package Includes: 1 x DB9 Male Welded Connector
* Images are for illustration only; actual product may vary.
