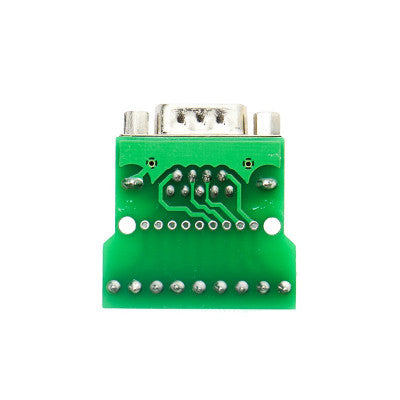

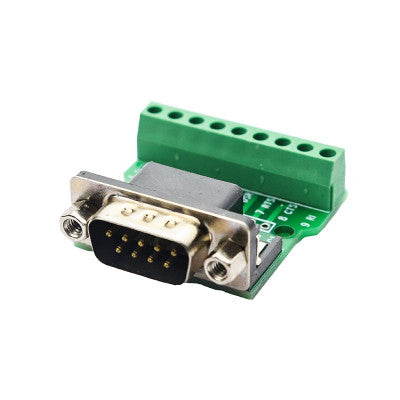

DB9 Male Screw Terminal to RS232 RS485 Conversion Board
Perfect for communication debug and project commissioning
- Color: Green
- Screw Terminal: 9
- Mounting Hole (mm): 3
- Length (mm): 40
- Width (mm): 37
- Height (mm): 15
- Weight (gm): 16
Top Features:
- Perfect for experimentation and prototype work
- Brings all 9 pins of a DB9 connector to screw terminal blocks
- Adapter used for communication debug

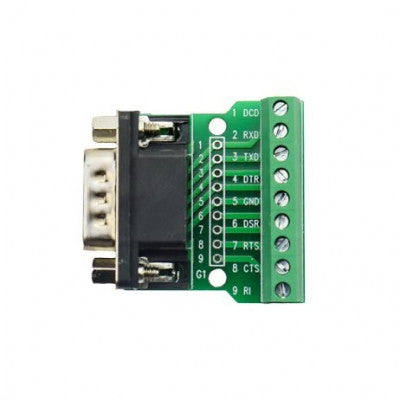

- 9 pcs signal line lead out, labeled clearly
This DB9 Male Screw Terminal to RS232 RS485 Conversion Board module is designed to facilitate project commissioning equipment. The terminal pitch is 3.96mm with a screw hole diameter of 2mm, requiring a 2mm slotted screwdriver for assembly. The all-copper DB9 Socket ensures better contact and anti-oxidation.
The DB9 male screw terminal to RS232 RS485 Conversion Board head features a terminal and row needles with high strength pressure for reliable contact. The terminals and row needles have corresponding numbers for easy identification. The board is military-grade with corrosion-resistant properties.
Package Includes: 1 x DB9 male screw terminal To RS232 RS485 Conversion Board.
Images are for illustration only; actual product may vary.
