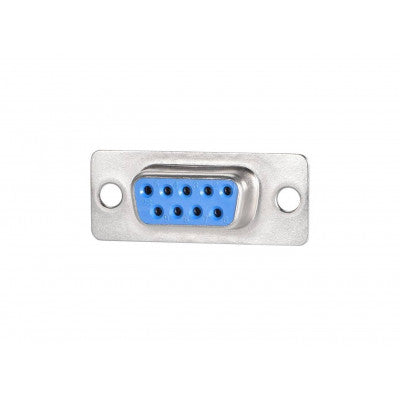

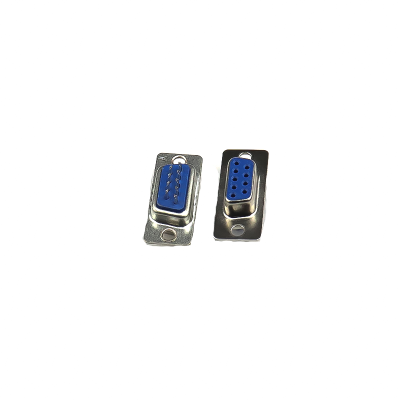

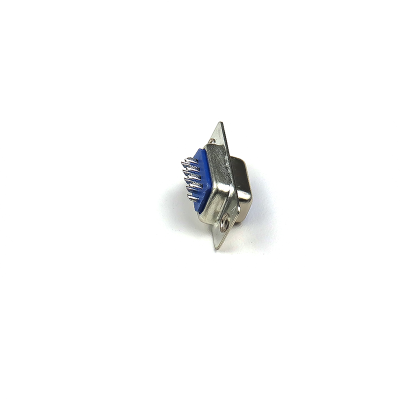

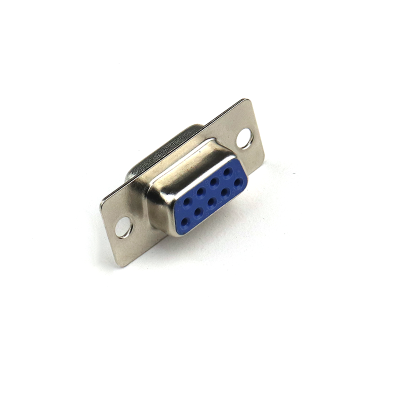

DB9 Female Welded Connector
The most common type of electrical connector for computer and communication devices.
- Connector Type: DB-9
- Connector: Female
- Voltage Rating (V): 250V AC
- Current Rating (A): 5
- Insulation Resistance (M): 1000
- Contact Resistance: 20m
- Operating Temperature Range (C): -55 to 125
- Material: Metal and plastic
- Length (mm): 30
- Width (mm): 12
- Height (mm): 15
- Weight (gm): 3
Features:
- Solder cup configuration for longevity
- Nickel-plated terminals
- Gold plated pins
- Good quality
The DB9 connector is part of the D-sub miniature (D-sub) connector plug and socket family. DB-9 pins are arranged in rows of two, as one five-pin row above a four-pin row. Designed to work with the EIA/TIA 232 serial interface standard, DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Today, the DB9 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others. However, there are still many legacy devices that use the DB9 interface for serial communication.
Applications:
- Network ports
- Computer video output
- Game controller ports
- Linear and rotary encoders in industries
* Images are for illustration only; actual product may vary.
