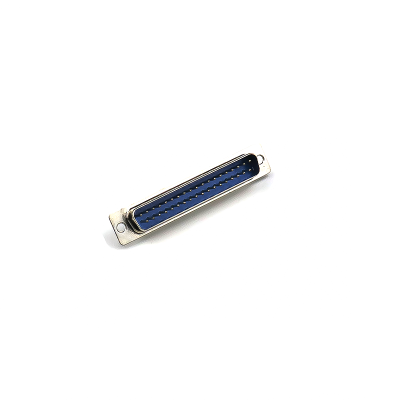

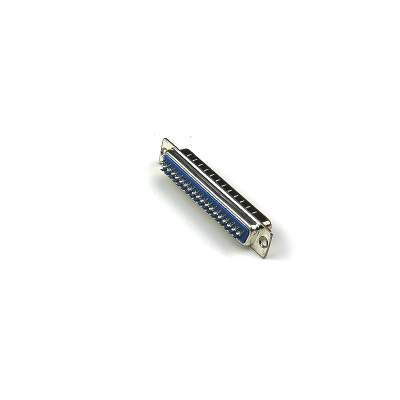

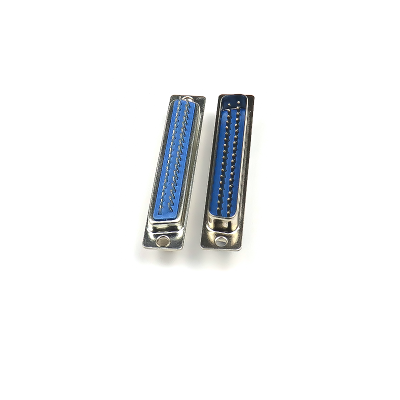

DB37 Male Welded Connector
The most common type of electrical connector for computer and communication devices.
- Connector Type: DB-37
- Connector: Male
- Voltage Rating (V): 250V AC
- Current Rating (A): 5
- Insulation Resistance (M): 1000
- Contact Resistance: 20m
- Operating Temperature Range (C): -55 to 125
- Material: Metal and plastic
- Length (mm): 69
- Width (mm): 12
- Height (mm): 15
- Weight (gm): 11
Top Features:
- Solder cup configuration for longevity
- Nickel-plated terminals
- Gold plated pins
- Good quality
The DB37 connector is part of the D-sub miniature (D-sub) connector plug and socket family. The pins are arranged in rows of two, with one nineteen-pin row above an eighteen-pin row. It is designed to work with the EIA/TIA 232 serial interface standard, making it compatible with various devices like keyboards, mice, and joysticks.
While modern interfaces like USB and Firewire have replaced the DB37 in many applications, there are still legacy devices that rely on this connector for serial communication.
Applications:
- Network ports
- Computer video output
- Game controller ports
- Linear and rotary encoders in industries
* Images are for illustration only; actual product may vary.
