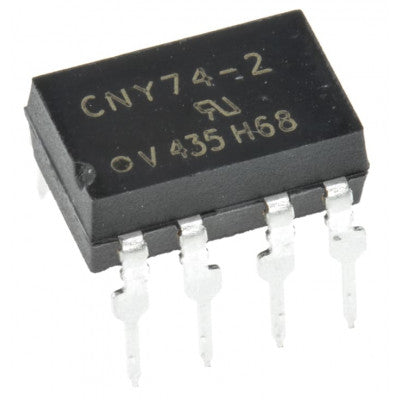

CNY74-2 Optocoupler
Optically coupled isolator with 2 channels and 2.5kV DC isolation test voltage
- Reverse voltage: 6 V
- Forward current: 60 mA
- Surge current: 1.5 A
- Power dissipation: 100 mW
- Collector-emitter breakdown voltage: 70 V
- Emitter-base breakdown voltage: 7 V
- Collector current: 100 mA
- Junction temperature: 125 °C
- Peak collector current: 100 mA
- Packaging: 8-lead, 16-lead plastic dual inline
Top Features:
- 2 isolator channels
- 2.5kV DC isolation test voltage
- Low coupling capacitance of 0.3 pF
- Current Transfer Ratio (CTR) of 100%
The CNY74-2 optocoupler is designed with a photo transistor optically coupled to a gallium arsenide infrared-emitting diode. The co-planar technique ensures a fixed distance between input and output, meeting high safety standards.
With a wide ambient temperature range, this optocoupler is suitable for galvanically separated circuits and non-interacting switches.
For more details, refer to the related document: CNY74-2 IC Data Sheet.
* Images are for illustration only; actual product may vary.
