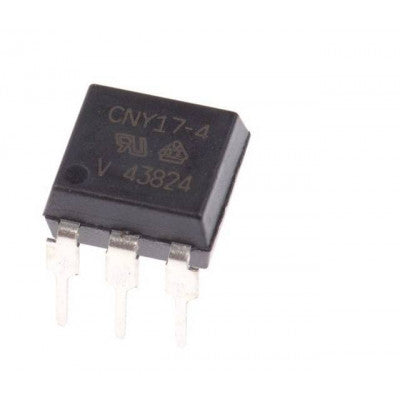

CNY17-4 Optocoupler Transistor Output 6-DIP
Optically coupled pair with high electrical isolation for digital and analog applications.
- Package / Case: DIP-6
- Length: 8.7 mm
- Width: 6.5 mm
- Height: 3.81 mm
- Collector-Emitter Breakdown Voltage: 70 V
- Current Transfer Ratio: 320%
- Fall Time: 15 us
- Isolation Voltage: 5000 Vrms
Top Features:
- 5000 VRMS Isolation Test Voltage
- Long term stability
- Industry standard DIP package
- Replace relays and transformers
The CNY17-4 is an optically coupled pair consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The CNY17 can be used to replace relays and transformers in many digital interface applications, as well as analog applications such as CRT modulation.
