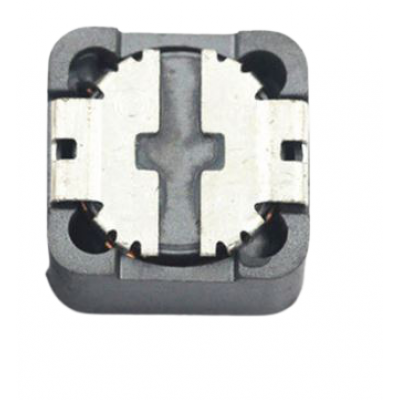

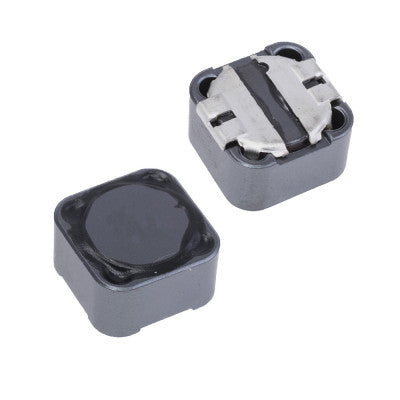

CDRH127 39uh Power Inductor
A passive electronic device with ferrite drum core construction and magnetic shielding.
- Package Includes: 1 x CDRH127 39uh (390) SMD Power Inductor
- Inductance: 39uh
- Printed: 390
- Tolerance(%): 20%
- DC Resistance (DCR): 72.9 mOhm Max
- Current Rating: 2.75 Ampere
- L×W×H: 12×12×7.0 mm
- Product weight: 4 gms
- Moisture Sensitivity Level: 1
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
Top Features:
- Ferrite drum core construction
- Magnetically shielded
The CDRH127 39uh Power Inductor is designed with a ferrite drum core and copper wire winding. It is suitable for surface mounting with terminals designed as pads. This inductor is ideal for use in notebook PCs, game machines, etc., serving as a DC-DC converter inductor.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
