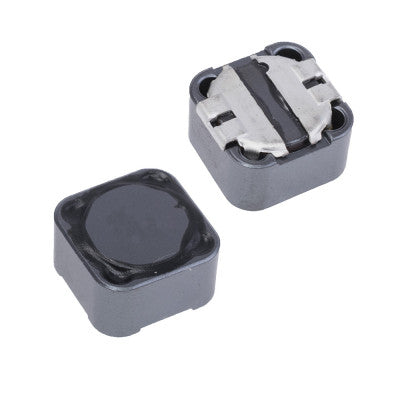

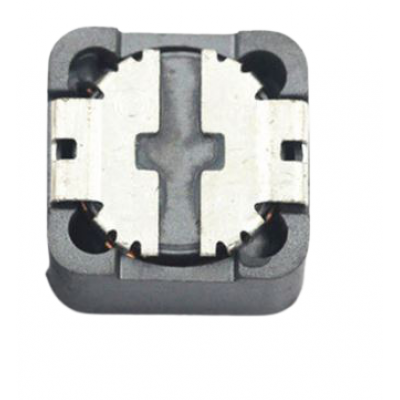

CDRH127 1uH Power Inductor
A passive electronic device with ferrite drum core construction and magnetic shielding.
- Package Includes: 1 x CDRH127 1uh (1R0) SMD Power Inductor
- Inductance: 1uH
- Printed: 1R0
- Tolerance(%): 20%
- DC Resistance (DCR): 7mOhm Max
- Current Rating: 10 Ampere
- L×W×H: 12×12×7.0 mm
- Product weight: 4 gms
- Moisture Sensitivity Level: 1
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
Top Features:
- Ferrite drum core construction
- Magnetically shielded
- Compact size: 12×12×7.0 mm
- High current rating: 10 Ampere
The CDRH127 1uH Power Inductor is designed with a ferrite drum core construction and magnetic shielding, making it ideal for various applications. The inductor has an inductance of 1uH with a tolerance of 20% and a maximum DC resistance of 7mOhm. It has a current rating of 10 Ampere and compact dimensions of 12×12×7.0 mm, weighing only 4 gms.
With the highest moisture sensitivity level of 1, this inductor is suitable for use in notebook PCs, game machines, and as a DC-DC converter inductor. Its terminals are designed for surface mounting, providing ease of installation.
Operating within a temperature range of -40°C to +100°C, the CDRH127 1uH Power Inductor ensures reliable performance in various environments.
* Images are for illustration only; actual product may vary.
