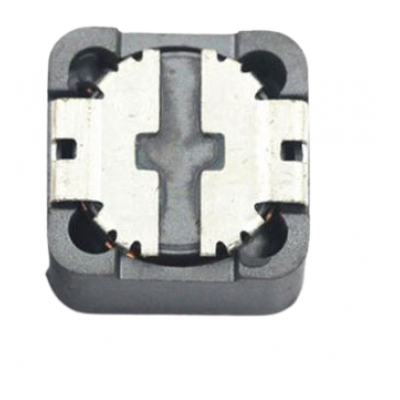

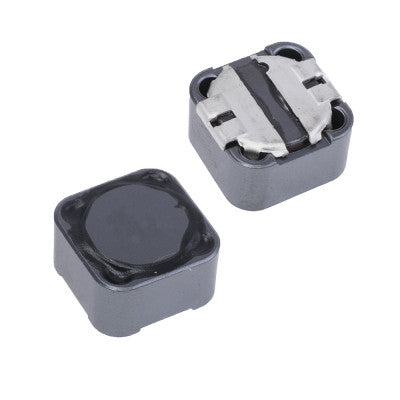

CDRH127 1.5uh Power Inductor
A passive electronic device with ferrite drum core and copper wire winding.
- Package Includes: 1 x CDRH127 1.5uh (1R5) SMD Power Inductor
- Inductance: 1.5uh
- Printed: 1R5
- Tolerance(%): 20%
- DC Resistance (DCR): 7.5mOhm Max
- Current Rating: 12 Ampere
- L×W×H: 12×12×7 mm
- Product weight: 4 gms
- Moisture Sensitivity Level: 1
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
Top Features:
- Ferrite drum core construction
- Magnetically shielded
The CDRH127 1.5uh Power Inductor is designed with terminals suitable for surface mounting. It is ideal for applications in notebook PCs, Game Machines, etc., serving as a DC-DC converter inductor.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
