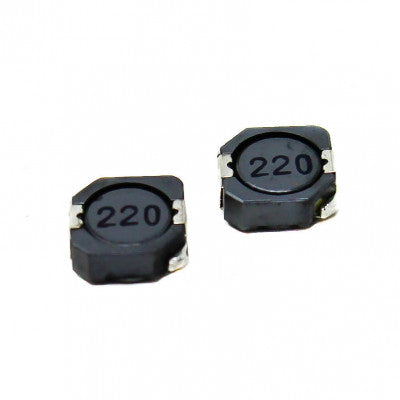

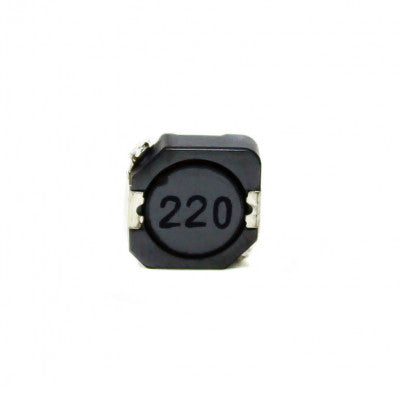

CDRH104R 22uH Power Inductor
A passive electronic device with ferrite drum and copper wire winding.
- Core: Ferrite
- Inductance (uH): 22
- Tolerance (%): 30
- Current Rating (A): 2.85
- DC Resistance (DCR) (m?): 2073
- Length (mm): 10
- Width (mm): 10
- Height (mm): 4
- Weight (gm): 1 (approx)
Top Features:
- Ferrite core drum construction
- Magnetically shielded
- Moisture sensitivity level: 1
- Operating temperature range: -40°C to +100°C
The CDRH104R 22uH Power Inductor is designed with terminals suitable for surface mounting. It is ideal for use in notebook PCs, game machines, etc., serving as a DC-DC converter inductor.
Package Includes: 1 x CDRH104R 22uH SMD Power Inductor
* Images are for illustration only; actual product may vary.
