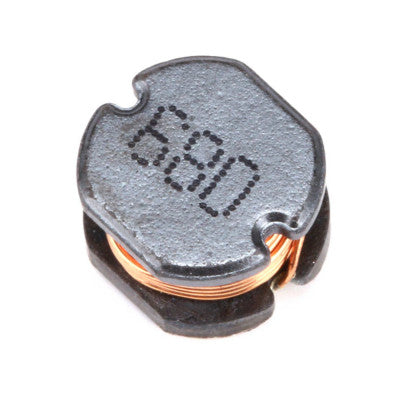

CD54 68uH Surface Mount Power Inductor
A compact surface mount power inductor with high inductance for various applications.
- Material Core: Ferrite
- Inductance(uH): 68
- Tolerance(%): 10
- Current Rating (mA): 610
- DC Resistance (DCR)(m?) at 20°C: 460
- Frequency (MHz): 2.52
- Mount: Surface Mount
- Operating Temperature (°C): -40 ~ 100
Features:
- Ferrite drum core construction
- Magnetically unshielded
- Moisture Sensitivity Level: 1
- Halogen Free available
A CD54 68uH Surface Mount Power Inductor (68 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for the surface mount component. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others.
Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors.
Package Includes: 1 x CD54 68uH Surface Mount Power Inductor (68 microH)
* Images are for illustration only; actual product may vary.
