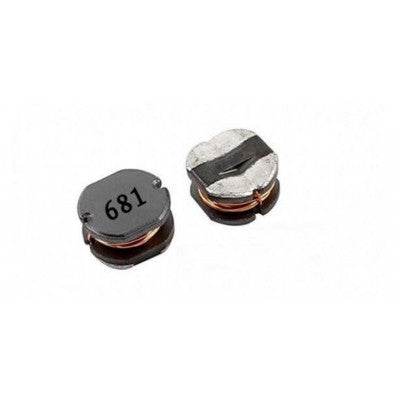

CD54 680uH Surface Mount Power Inductor
A 2-terminal passive device with ferrite drum core construction.
- Material Core: Ferrite
- Inductance(uH): 680
- Tolerance(%): 15
- Current Rating (mA): 280
- DC Resistance (DCR)(m?) at 20°C: 4.05
- Test Frequency (KHz): 1KHz/0.25V
- Mount: Surface Mount
- Operating Temperature (°C): -40 ~ 100
- Length (mm): 5
- Width (mm): 5
- Height (mm): 4
- Weight (gm): 1 (approx)
Top Features:
- Ferrite drum core construction
- Magnetically unshielded
- Moisture Sensitivity Level: 1
- Halogen Free available
A CD54 680uH Surface Mount Power Inductor is a 2-terminal passive device with a coil of wire wound around a ferrite core. It is commonly used in mobile phones, PDAs, MP3 players, DSC/DVC, portable DVD players, etc., as DC-DC Converter inductors. When a current is applied through the inductor, a magnetic field is generated around it. The magnetic field produced by using a magnetic core is significantly stronger than others.
The terminals of this inductor are designed for surface mounting applications. It has an inductance of 680uH with a tolerance of 15%. The inductor has a current rating of 280mA and a DC resistance of 4.05m? at 20°C. It can operate in temperatures ranging from -40°C to 100°C. The compact dimensions of 5mm x 5mm x 4mm and a weight of approximately 1 gram make it suitable for various electronic devices.
Package Includes: 1 x CD54 680uH Surface Mount Power Inductor (680 microH)
