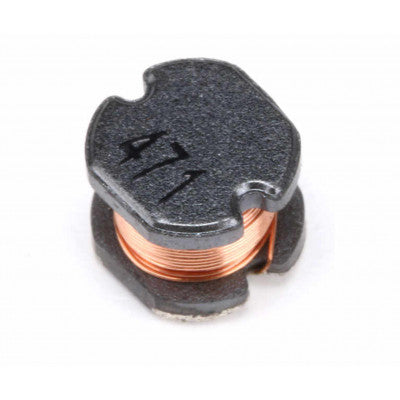

CD54 470uH Surface Mount Power Inductor
A passive device with ferrite drum core construction for various electronic applications.
- Material Core: Ferrite
- Inductance(uH): 470
- Tolerance(%): 20
- Current Rating (A): 0.23
- DC Resistance (DCR)(m?) at 20°C: 2.3
- Test Frequency (Hz): 100K @ 1V
- Mount: Surface Mount
- Operating Temperature (°C): -40 ~ 100
- Length (mm): 5
- Width (mm): 5
- Height (mm): 4
- Weight (gm): 1 (approx)
Features:
- Ferrite drum core construction
- Magnetically unshielded
- Moisture Sensitivity Level: 1
- Halogen Free available
A CD54 470uH Surface Mount Power Inductor is a 2-terminal passive device with a coil of wire wound around a ferrite core. It is commonly used in mobile phones, PDAs, MP3 players, DSC/DVC, portable DVD players, etc., as DC-DC Converter inductors. When a current is applied through the inductor, a magnetic field is generated around it. The magnetic field produced by using a magnetic core is significantly stronger than others.
Package Includes: 1 x CD54 470uH Surface Mount Power Inductor (470 microH)
* Images are for illustration only; actual product may vary.
