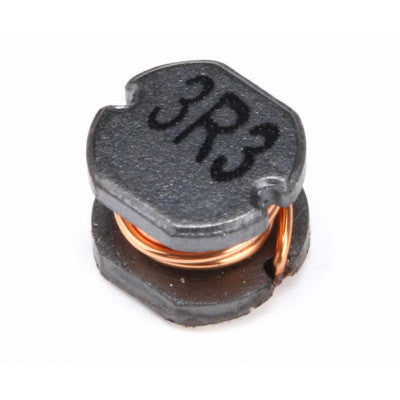

CD54 3.3uH Surface Mount Power Inductor
A compact and efficient power inductor for various electronic applications.
- Material Core: Ferrite
- Inductance(uH): 3.3
- Tolerance(%): 20
- Current Rating (A): 1.5
- DC Resistance (DCR)(m?) at 20°C: 101
- Frequency (KHz): 100
- Mount: Surface Mount
- Operating Temperature (°C): -40 ~ 100
Top Features:
- Ferrite drum core construction
- Magnetically unshielded
- Moisture Sensitivity Level: 1
- Halogen Free available
A CD54 3.3uH Surface Mount Power Inductor (3.3 microH) is a 2-terminal passive device with a coil of wire wound around a core, commonly used in mobile phones, PDAs, MP3 players, DSC/DVC, portable DVD players, etc., as DC-DC Converter inductors. The inductor generates a magnetic field when a current is applied through it, with a magnetic core producing a much stronger magnetic field compared to other types of cores. The terminals of the inductor are designed for surface mounting.
The operating temperature range of the inductor is -40°C to +100°C, including self-temperature rise of the coils. It has a moisture sensitivity level of 1 and is halogen-free. The dimensions of the inductor are LxWxH: 5 x 5 x 4 mm, with a product weight of 0.4 gm (Reference).
Package Includes: 1 x CD54 3.3uH Surface Mount Power Inductor (3.3 microH)
