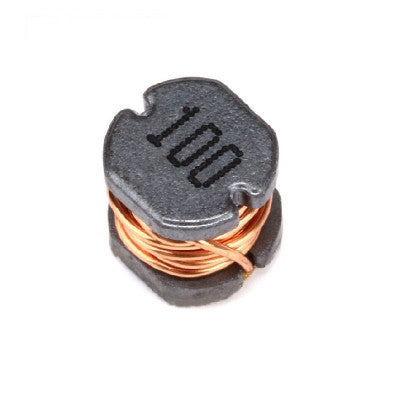

CD54 10uH Surface Mount Power Inductor
A compact and efficient power inductor for various electronic applications.
- Material Core: Ferrite
- Inductance(uH): 10
- Tolerance(%): 20
- Current Rating (A): 1.44
- DC Resistance (DCR)(m?) at 20°C: 100
- Frequency (MHz): 2.52
- Mount: Surface Mount
- Operating Temperature (°C): -40 ~ 100
Features:
- Ferrite drum core construction
- Magnetically unshielded
- Moisture Sensitivity Level: 1
- Halogen Free available
A CD54 10uH Surface Mount Power Inductor is a 2-terminal passive device with a coil of wire wound around a core, suitable for applications in mobile phones, PDAs, MP3 players, DSC/DVC, portable DVD players, etc., as DC-DC Converter inductors. When a current is applied through the inductor, a magnetic field is generated around it. The magnetic field produced by using a magnetic core is significantly stronger than others.
The terminals of the inductor are pads for surface mounting. The inductor has an operating temperature range of -40°C to +100°C (including coil self-temperature rise) and a storage temperature range of -40°C to +100°C. The solder reflow temperature is 260 peak. The dimensions are LxWxH: 5 x 5 x 4 mm, and the product weight is 0.4 gm (Ref.).
Package Includes:
- 1 x CD54 10uH Surface Mount Power Inductor (10 microH)
Images are for illustration only; actual product may vary.
