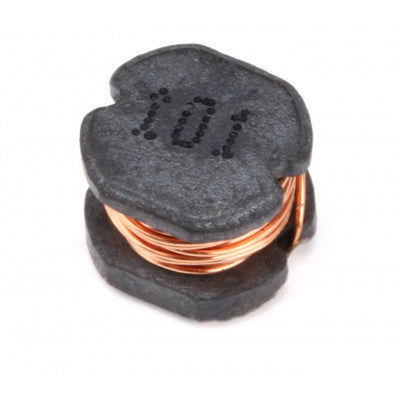

CD54 100uH Surface Mount Power Inductor
A high inductance surface mount power inductor for various electronic applications.
- Material Core: Ferrite
- Inductance(uH): 100
- Tolerance(%): 10
- Current Rating (mA): 520
- DC Resistance (DCR)(m?) at 20°C: 700
- Frequency (KHz): 1
- Mount: Surface Mount
- Operating Temperature (°C): -40 ~ 100
Features:
- Ferrite drum core construction
- Magnetically unshielded
- Moisture Sensitivity Level: 1
- Halogen Free available
A CD54 100uH Surface Mount Power Inductor is a 2-terminal passive device with a coil of wire wound around a core to produce high inductance. When a current is applied, a magnetic field is generated around it. The magnetic field generated by using a magnetic core is much stronger than others.
Applications include Mobile phones, PDAs, MP3 players, DSC/DVC, portable DVD players, etc., as DC-DC Converter inductors.
Package Includes: 1 x CD54 100uH Surface Mount Power Inductor (100 microH)
* Images are for illustration only; actual product may vary.
