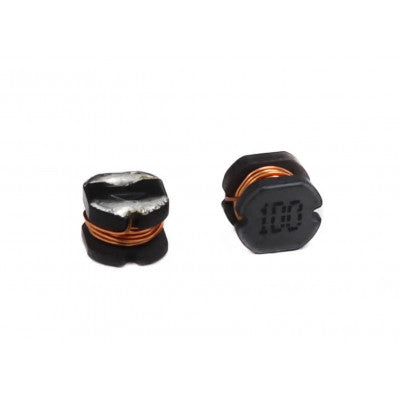

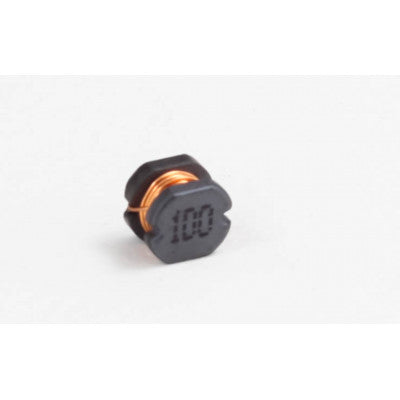

CD43 10uH 1A SMD Power Inductor
A compact surface mount power inductor with ferrite drum core and high moisture resistance.
- Inductance: 10uH
- Mounting Type: SMD/SMT
- Material Core: Ferrite
- Tolerance: 20%
- Current Rating: 1.04 mA
- DC Resistance (DCR) at 20°C: 182 mΩ
- Frequency: 2.52 MHz
- Operating Temperature: -40 to 100°C
- Length: 4.3 mm
- Width: 4 mm
- Height: 3.2 mm
- Weight: 1 gm (approx)
Top Features:
- Ferrite drum core construction
- Compact in size
- Magnetic shield
- Moisture resistant
The CD43 10uH 1A SMD Power Inductor is a surface mount device with a ferrite drum core and high moisture resistance. It is RoHS compliant and has pads for surface mounting. This power inductor is ideally used in mobile phones, MP3 players, PDAs, HDDs, DSCs/DVCs, etc., as DC-DC converter inductors.
Package Includes: 1 x CD43 10uH 1A SMD Power Inductor
* Images are for illustration only; actual product may vary.
