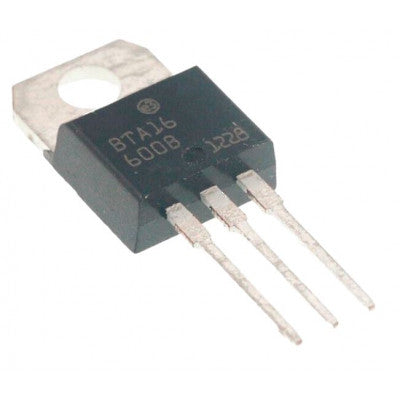

BTA16 600V Triac Series
Suitable for general purpose AC switching and recommended for inductive loads.
- Repetitive peak off-state voltages: 600V
- Peak off-state reverse voltages: 600VRMS
- On-state current: 16.0A
- Non-repetitive peak on-state current: 168A
- Max. Operating Junction Temperature: 110°C
- Storage Temperature: -45~150°C
- Package Includes: 1 x BTA16 600V - 16A Triac
Top Features:
- General purpose AC switching
- Snubberless version recommended for inductive loads
- High commutation performances
- Voltage insulated tab rated at 2500V RMS
The BTA16 - 600V triac series is suitable for a wide range of applications such as static relays, heating regulation, induction motor starting circuits, and light dimmers. The snubberless versions are preferred for use with inductive loads due to their high commutation performances. The series is designed with an internal ceramic pad to provide voltage insulated tab complying with UL standards.
For more details or bulk pricing, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
