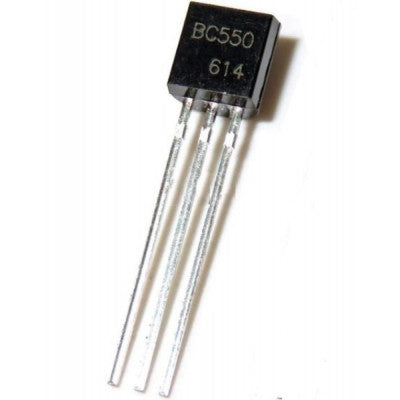

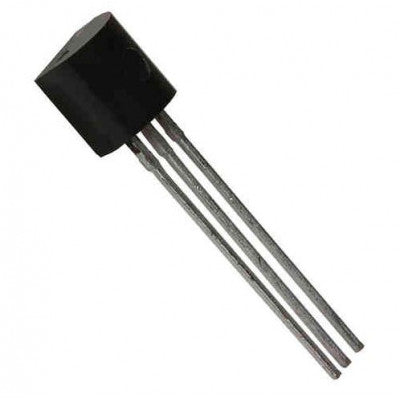

BC550 Transistor
A semiconductor device for amplifying or switching electronic signals and power.
- Transistor Polarity: NPN
- Collector-Base Voltage (VCBO): 50V
- Collector-Emitter Voltage (VCEO): 45V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 100mA
- Collector Capacitance (Cc): 1.5pF
- Transition Frequency (fT): 100MHz
- DC Current Gain (hFE): 420-800
- Operating Temperature Range: -65 - 150°C
- Power Dissipation (PD): 500mW
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC550 is composed of semiconductor material with at least three terminals for connection to external circuits. It allows controlling current through one pair of terminals using voltage or current applied to another pair, enabling signal amplification. Some transistors are individually packaged while many are embedded in integrated circuits.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416
Images are for illustration only; actual product may vary.
