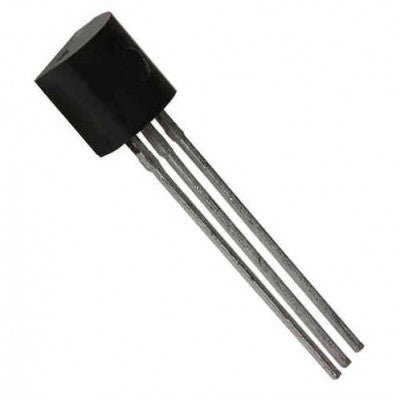

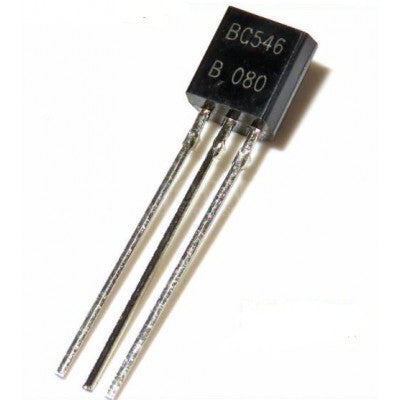

BC546 NPN Amplifier Transistor
A versatile semiconductor device for amplifying electronic signals and power.
- Transistor Polarity: NPN
- Collector-Base Voltage (VCBO): 80VDC
- Collector-Emitter Voltage (VCEO): 65VDC
- Emitter-Base Voltage (VEBO): 6VDC
- Continuous Collector Current (IC): 100mA
- Output Capacitance (Cobo): 4.5pF
- Transition Frequency (fT): 300MHz
- DC Current Gain (hFE): 110-450
- Operating Temperature Range: -55 - 150°C
- Power Dissipation (PD): 625mW
Top Features:
- Amplifies or switches electronic signals
- Small size and weight for compact equipment
- Operates at low voltages, ideal for battery-powered devices
- High energy efficiency for low-power applications
The BC546 NPN Amplifier Transistor is a semiconductor device made for applications in mobile phones, industrial control, television, flip-flops, and high-frequency audio circuits. It consists of three layers of semiconductor material and is used to amplify or switch electronic signals and power. This versatile transistor offers a range of operating voltages and currents suitable for various electronic systems.
The NPN Amplifier Transistor, with its small size and weight, allows for shrinking equipment size while maintaining high performance. Its low operating voltages make it compatible with battery-powered devices with a few cells, offering energy-efficient solutions for modern electronic systems.
With a collector-base voltage of 80VDC, a collector-emitter voltage of 65VDC, and a transition frequency of 300MHz, this transistor provides reliable performance across a wide range of operating temperatures from -55°C to 150°C. Whether used in high-frequency applications or low-power circuits, the BC546 NPN Amplifier Transistor is a crucial component in modern electronic devices.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
