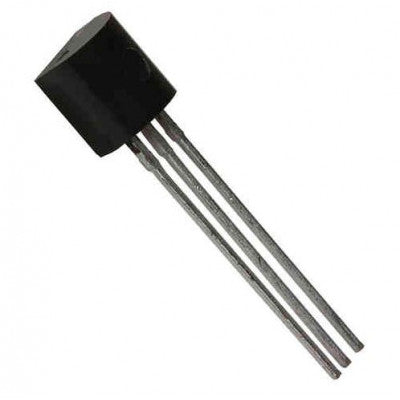

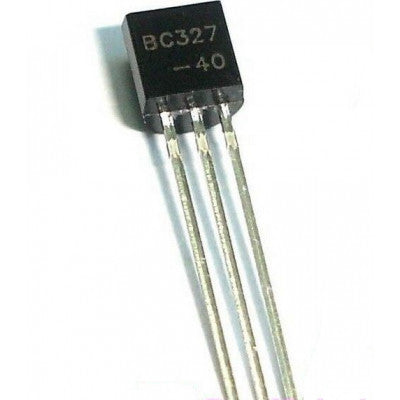

BC327 Semiconductor Transistor
A versatile semiconductor device for signal amplification and power switching.
- Transistor Polarity: PNP
- Collector-Emitter Breakdown Voltage (BVCEO): 45VDC
- Collector-Emitter Voltage (VCEO): 45VDC
- Emitter-Base Voltage (VEBO): 5VDC
- Continuous Collector Current (IC): 800mA
- Output Capacitance (Cobo): 11pF
- Transition Frequency (fT): 260MHz
- DC Current Gain (hFE): 100-630
- Operating Temperature Range: -55 - 150°C
- Power Dissipation (PD): 1.5W
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC327 is a semiconductor device designed with at least three terminals to connect to an external circuit. By controlling the current through one pair of terminals with a voltage or current applied to another pair, it can amplify signals effectively. The transistor has a high power and current handling capability, making it a versatile component in electronic applications. While some transistors are individually packaged, a majority are integrated into circuits for various functionalities.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
